Find Layers Containing Item.

  • November 11, 2013
  • 1 reply
  • 4275 views

We are using Creo Parametric 2.0.

I apologize if this topic has already been covered under another thread. I have tried to search the forums and have not found an answer to my specific problem.

In a drawing, under the Layer Tree, under the Show pulldown, there is a Find tool. It seems as though this would be a useful tool. However, we have not been able to figure out how this works. In particular, I would want Find Layers Containing Item... When I try this, a "Layer Object" menu pops up containing Solid Geometry, Component, Feature, etc.

I would have thought I could simply click Find Layers Containing Item..., then select an item from the drawing, and the associated layer(s) would be highlighted in the tree. Even if I select "Datum Plane" (for example) from the "Layer Object" menu, then select a datum plane in the drawing window, click OK and Done/Return nothing happens.

What am I doing wrong? Leaving out a step? Does anyone know if there is a step-by-step procedure for this? I have looked all over PTC (and Google).

Thanks for any help.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

    1 reply

    V
    vrajan10-Marble
    10-Marble
    November 12, 2013

    "In a drawing, under the Layer Tree, under the Show pulldown, there is a Find tool." It seems as though this would be a useful tool. However, we have not been able to figure out how this works. In particular, I would want Find Layers Containing Item... When I try this, a "Layer Object" menu pops up containing Solid Geometry, Component, Feature, etc.

    Hi Mark,

    The find tool you are asking is used to pick a component or view and manipulate its particular layers disregarding the other components or views. I have worked like this once but am not sure what was the case. If you give a precise detail on what you want, may be i could try and get you back with some solution

    Regards,

    Vivek Rajan

    P
    ptc-11390411-VisitorAuthor
    1-Visitor
    November 12, 2013

    Thank you, Vivek. I think you may be talking about "Active Layer Object Selection". (The arrow near the top left of the Layer Tree) We do use that function.

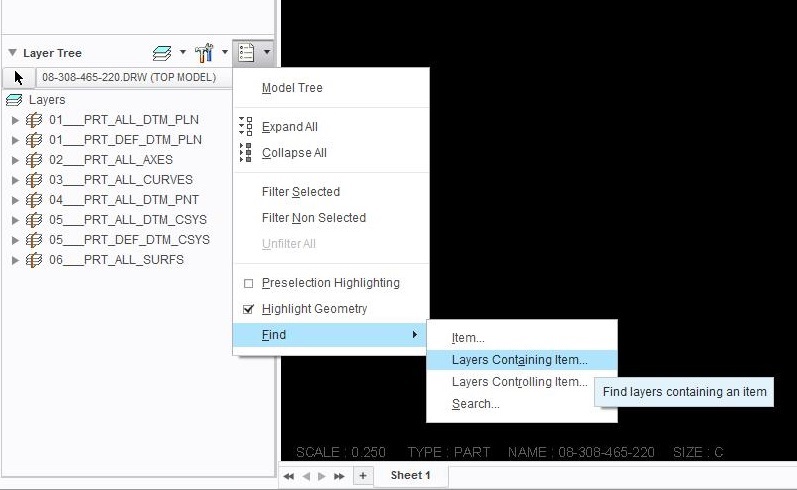

    However, the tool to which I am referring can be seen in the following image:


    Again, it is not exactly critical that we figure this out. It just seems as though this could be a useful tool for determining any layer(s) containing a particular object.
