How to generate point cloud information for a modelled surface.

  • November 24, 2015
  • 3 replies
  • 2094 views

Am required to generate point cloud information for any given surface. The generated data should contain horizontal angle, vertical angle and radial distance of each point on the surface from a reference point. is this feasible in Creo.

3 replies

gmali1-VisitorAuthor
1-Visitor
November 24, 2015

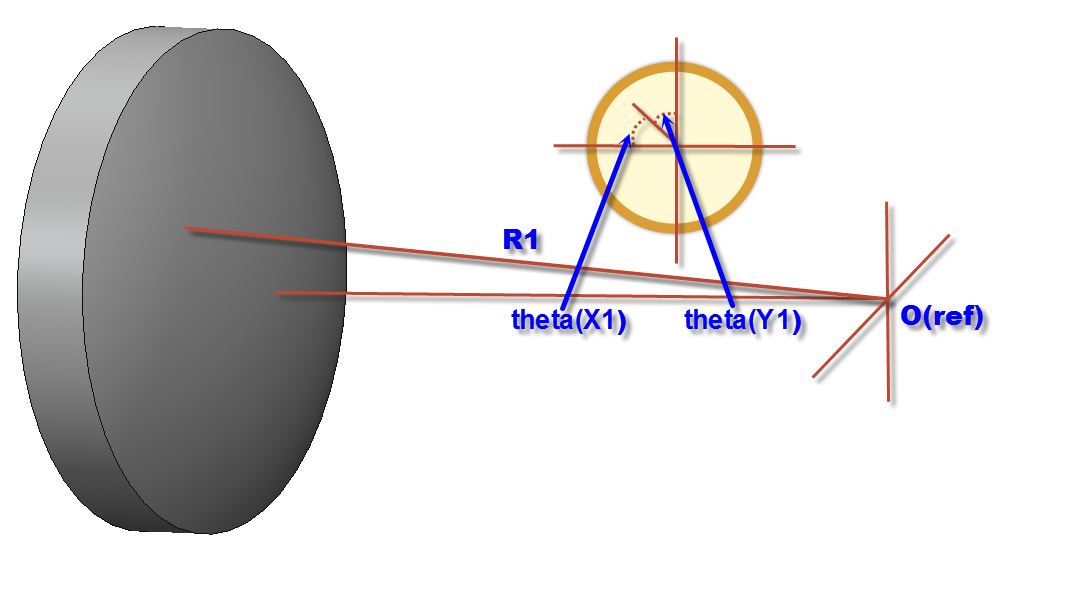

for example - mapping this spherical surface

dschenken1-Visitor
1-Visitor
November 25, 2015

The easist method is to generate an STL file and look at the vertex coordinates for the triangle elements. Changing them from XYZ coordinates is pretty easy and can be done in Excel VBA or any number of general purpose languages as can changing the coordinate system offset.

Check STL (file format) - Wikipedia, the free encyclopedia and The StL Format | fabbers.com

All you need is to extract all the lines that start with "vertex."

If there aren't too many vertices, you can open the file in Excel and work it right from the spreadsheet.

gmali1-VisitorAuthor
1-Visitor
November 25, 2015

Thank you David.

What are the steps to be followed after the .stl file is made to get the vertex data into Excel. Is the model orgin used as a reference for this coordinates.
