Round tool ProE WF5

  • September 5, 2013
  • 4 replies
  • 1981 views

I need some support here

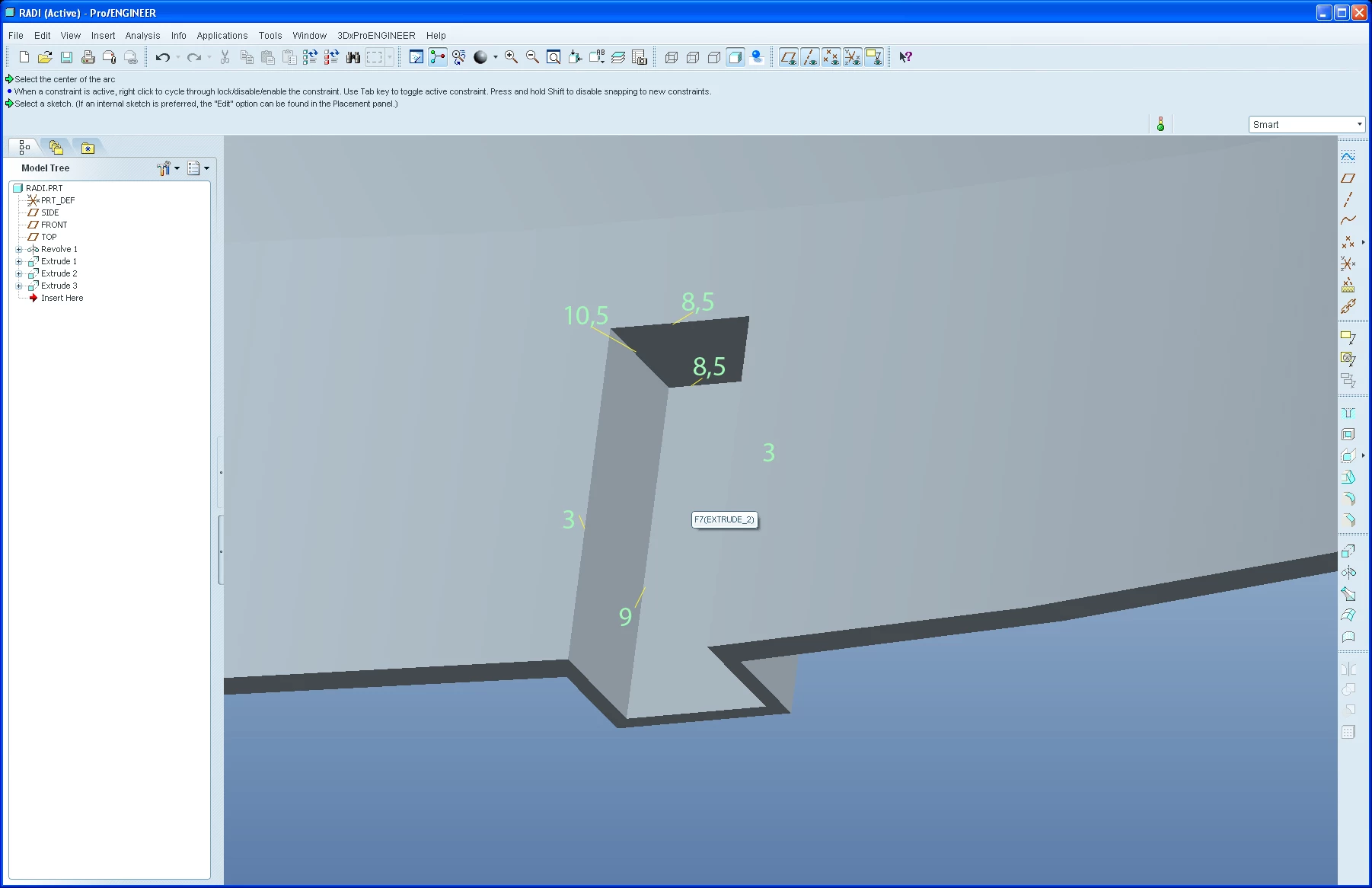

Is there a solution for my problem? I have attached a picture with the different radius and a ProE-part for you to look at.

I'm supposed to make all sharp edges round, but the radius are different for every edge.

If I for example make the radius 10,5mm and then select the one supposed to be 9mm ProE selects all way round.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by Nai

Just add all the different radius in a single round feature.


4 replies

rohit_rajan15-Moonstone
15-Moonstone
September 5, 2013

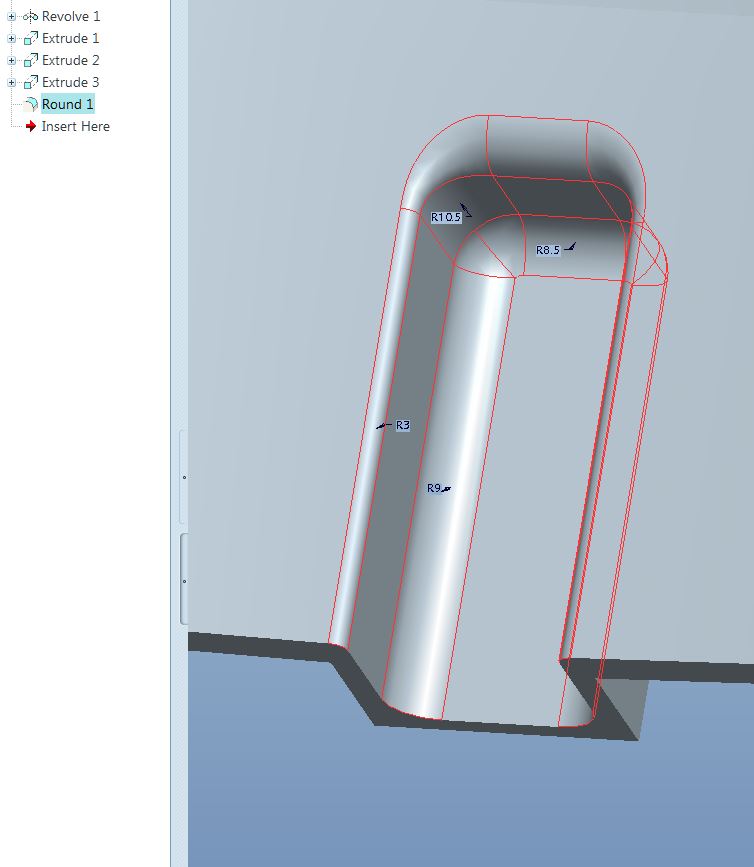

do the 3 and 9 radius first

next do the 8.5 radius..when you do the 8.5 below radius it will select the complete loop, press shift key and select the origial 8.5 edge

then in the end do the 10.5 radius.

gkrishna1-Visitor
1-Visitor
September 5, 2013

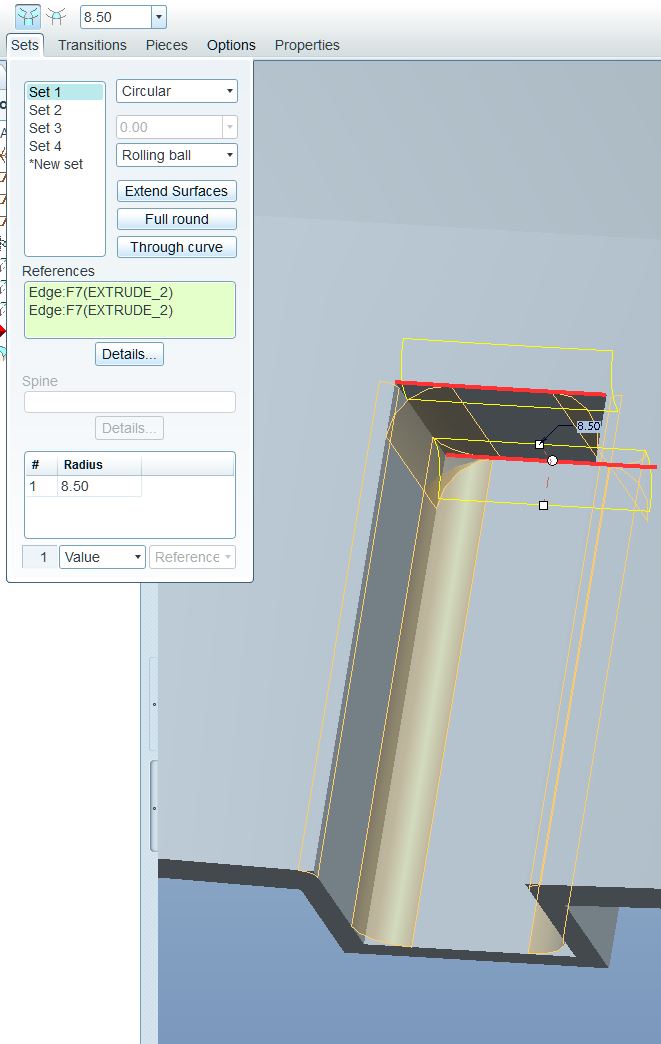

Yes you can in round tool there is there is option for adding new set having different values.

Nai1-VisitorAnswer
1-Visitor
September 5, 2013

Just add all the different radius in a single round feature.


ptc-50203911-VisitorAuthor
1-Visitor
September 9, 2013

Thanks for your reply!
