Section View X-Hatching

  • July 19, 2012
  • 1 reply
  • 1179 views

How can the X-Hatch be turned off in a drawing section view. The pattern is off, but the the hatch is still present in the drawing view preventing a change in linestyle / weight (shows up very dark in print).

Thanks


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

K
KshetrabasiMaha1-Visitor
1-Visitor
July 20, 2012

Hi

You can erase the X-Hatch

or chage the spacing of lines in drawing for better print

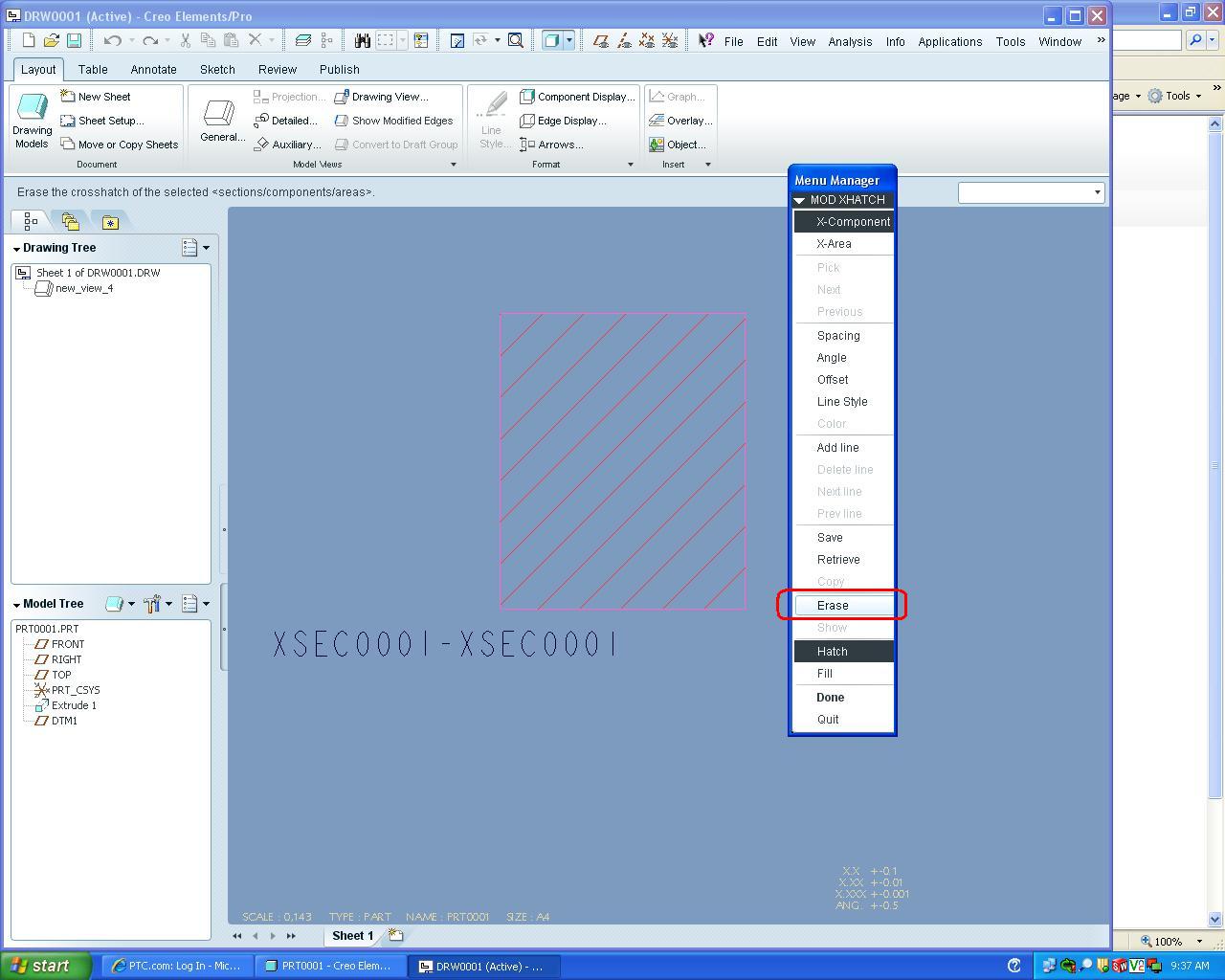

To do this double click on the hatch section and change the setting

If your requirement is something else ; please reply

Regards

K.Mahanta
