Drawings about tolerance table
hello everyone

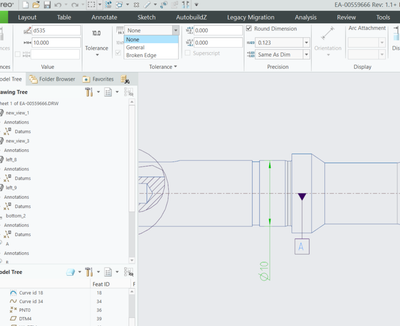

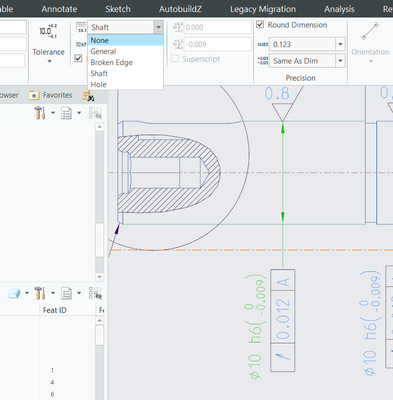

why I can't find the shaft and hole in the first drawing.what should I do to make the shaft or hole option apperance,like the second picture
thanks in advance.
Solved! Go to Solution.
- Labels:
-
2D Drawing
Accepted Solutions
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
ok, thanks a lot. and here is my actual action. also for others who suffer from this question to refer.
right now I know there is two way to retrieve the tolerance table. one is in the drawing mode, the other is in the 3D mode
At first, I only retrieved the tolerance table in the 3D mode. that is why I can't find the "shaft" or"hole" when I want to mark a dimension on the draft, but it works with the dimension on the Molel.
when I retrieved the torlance table in drawing mode, it works.
thanks again😊
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
Most likely you need to load the hole/shaft tolerance in your models. Follow the thread below and see if the steps outlined resolve the issue.
