BILL OF METRAL TABLE IN MODEL BASED DEFINTION

[BK_12968907]

Is it possible to create BOM in model base definition on CREO 11

[vnamboodheri]

Hi @BK_12968907,

Thank you for your question.

Also, feel free to add any additional information to your post you think might be relevant. You could add:

1. If you have referred to any PTC documentation or help center for guidance
2. Describe the steps you have already taken to create the BOM in the model-based definition.
3. Share any error messages or issues encountered during the process.
4. What do you expect to achieve with the BOM in the model-based definition.

It sometimes helps to have screenshots to better understand what you are trying to do.

Regards,

Vivek N
Community Moderation Team

[BK_12968907]

Hello Vnamboodher,

1.. I referred the help documentation but I couldn't able to identify BOM in MBD related topic,

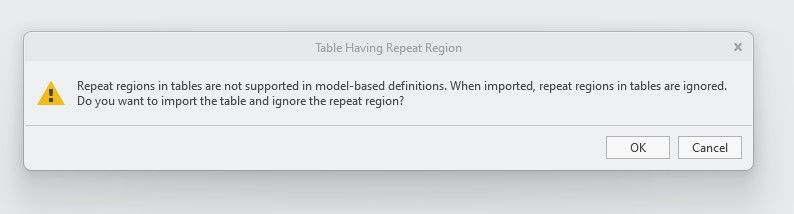

2. I tried to place Predefined BOM from the TABLE option, Error message popped that we can't place Repeat region table in the MBD area.

3. Its My customer request to show the balloons with BOM. for welding structure.

Please let me know if you find any other way to add BOM and balloons(parametric) in the MBD.

Regards

[MartinHanak]

Hi,

MBD functionality does not enable to generate BOM table. You have to create a drawing and put repeat region table into it.
