BOM-show all part & qty of Assembly in table in Creo Drawing

[bnguyen-2]

Dear PTC

I have one assemly (more 1000 parts include many sub-assembly)

I want to do a list spare part for all Big-assemly

Ex: Asm 1 have 7kids: 1.1 to 1.7

ASM 2 have 4kids: 2.1 to 2.4

....

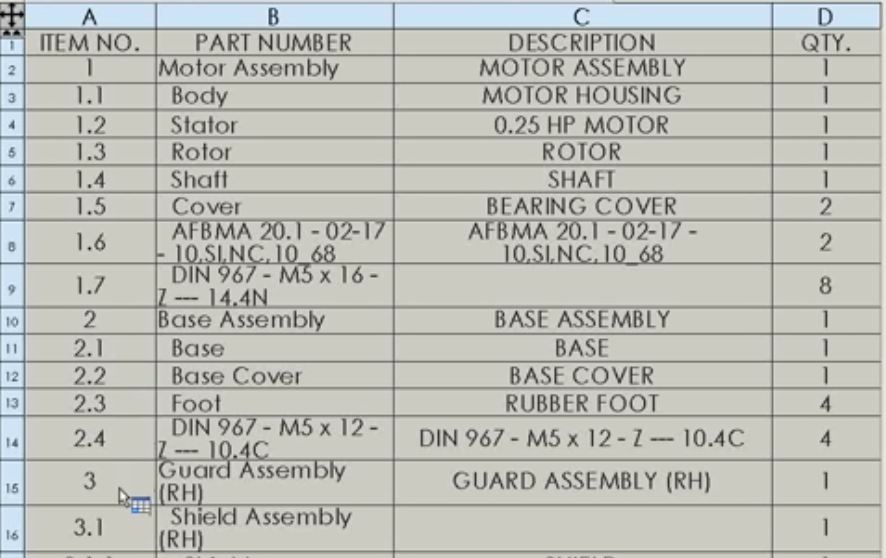

How we do like below list in Drawing of CREO?

Thanks & regards

-

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

[bduncan]

try this

if save_idx==pass_num && rpt_index==1
save_idx=0
endif

if rpt_index>save_idx
save_idx=rpt_index
pass_num=0
else
pass_num=save_idx
endif

if pass_num==0

if rpt_index==1
current_level=rpt_level
save_2sn=0
save_3sn=0
save_4sn=0
save_5sn=0
/*加入点
endif
if current_level==rpt_level
if rpt_level==2
save_2sn=save_2sn+1
endif
if rpt_level==3
save_3sn=save_3sn+1
endif
if rpt_level==4
save_4sn=save_4sn+1
endif
if rpt_level==5
save_5sn=save_5sn+1
endif
/*加入点
else
if rpt_level==2
save_2sn=save_2sn+1
/*save_4sn=save_2sn
endif
if rpt_level==3
save_3sn=save_3sn+1
if current_level<rpt_level
save_3sn=1
endif
/*save_4sn=save_3sn
endif
if rpt_level==4
save_4sn=save_4sn+1
if current_level<rpt_level
save_4sn=1
endif
endif
if rpt_level==5
save_5sn=save_5sn+1
if current_level<rpt_level
save_5sn=1
endif
endif
/*加入点
current_level=rpt_level
endif

if rpt_level==2
myidx=itos(save_2sn)
endif
if rpt_level==3
myidx=itos(save_2sn)+"."+itos(save_3sn)
endif
if rpt_level==4
myidx=itos(save_2sn)+"."+itos(save_3sn)+"."+itos(save_4sn)
endif
if rpt_level==5
myidx=itos(save_2sn)+"."+itos(save_3sn)+"."+itos(save_4sn)+"."+itos(save_5sn)
endif
/*加入点
endif

[bnguyen-2]

Dear Mr. Blue Duncan

Can you help me do detail step

it first time for me

Thanks your help

[bduncan]

See the attachment.

[akuppusamy]

Dear Mr. Blue Duncan,

I saw the BOM table which you have attached for Gear box assembly. it looks fantastic and I would like to implement this into my assembly but I don't know where to enter these codes. Sorry I am a beginner, so can you help me?

[bnguyen-2]

Dear mr.BLUE DUNCAN

Thanks you show to me CREO can do it

but the template file just valid your file only, orther ASM can't

Thanks

[bduncan]

That is impossible. If you do not mind,you can share the files,I'll show you how to achieve

[bnguyen-2]

Dear Sir

Please attach file

http://www.mediafire.com/download/kpl4wik78w3jkz9/Gear-box.zip

Thanks your help

Thanks & Regards

[bduncan]

[bnguyen-2]

Dear BLUE DUNCAN

Thanks your help

Now is ok

Thanks & Regards
