Can fillet radius be the same as the thickness of material?

pvn
8-Gravel
8-Gravel

Can fillet radius be the same as the thickness of material?

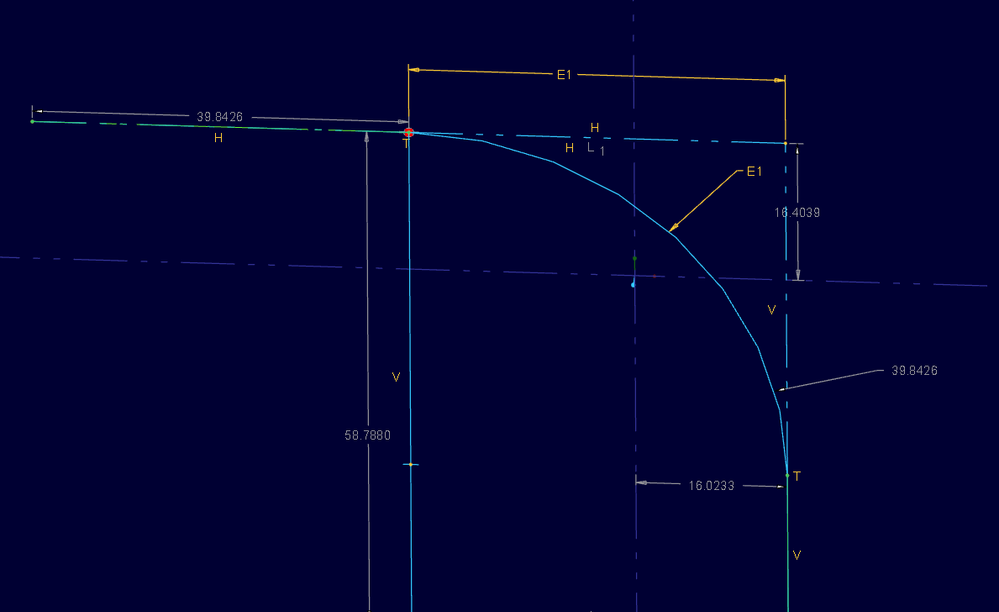

I am sketching AND extrusion. The problem I have is that Creo doesn't allow me to make the radius of the fillet the same as the thickness (0.125). See screenshot. This is bizzare. To go around that I have to draw an ARC.

Is there any way around it? And how do you deal with this?

1 ACCEPTED SOLUTION

Accepted Solutions
dschenken
21-Topaz I
(To:pvn)

Instead of the construction line, just constrain the arc center to the nearby surface/sketch entity. This will also eliminate the need for the tangent constraint.

View solution in original post

5 REPLIES 5
BenLoosli
23-Emerald II
(To:pvn)

The problem is that you are eliminating the end line when the radius is equal to the part thickness and the softwrae cannot handle that condition. You can do a .124 radius on the ,125 thickness, but not .125. If you really need the .125, then skecthing the arc is the only method.



pvn
8-Gravel
8-Gravel
(To:BenLoosli)

Thank you!

Makes sense. I used the ark. Shame that fillet in sketch can't be used. Works on other software.

Other option I was concidering to add fillet later to the extrusion. But in case of the sweep, fillet doesn't apply continuously.

TomD.inPDX
17-Peridot
(To:pvn)

Something like this may work... or a feature relation to make the radius equal to the thickness.




pvn
8-Gravel
8-Gravel
(To:TomD.inPDX)

Thank you. That can be done as well. Good to have options.

I like to keep sketches clean with good ballance between constrains and dimensions. So I'd be able to figure out what's what later on when design gets complicated 🙂

dschenken
21-Topaz I
(To:pvn)

Instead of the construction line, just constrain the arc center to the nearby surface/sketch entity. This will also eliminate the need for the tangent constraint.
