Create a datum plane parallel to screen (Creo 11)

[VASILISKARASTER]

How can i create a datum plane parallel to screen orientation?

Default coordinate system is oriented in the default orientation as i enter in an empty part model. I want to create a datum plane parallel to the screen, while the coordinate is in the default orientation.

[MartinHanak]

Hi,

unfortunately your request makes no sense.

[Van_AG · Accepted solution]

Well, it can be done, but why?

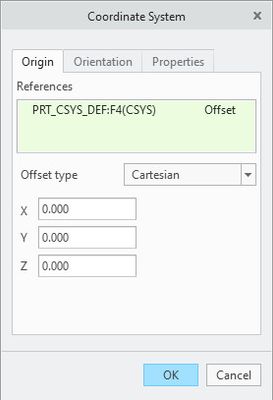

With the default coordinate system (PRT_CSYS_DEF), create a new coordinate system (CS0) with an offset from the default and the z-axis perpendicular to the screen, as shown below.

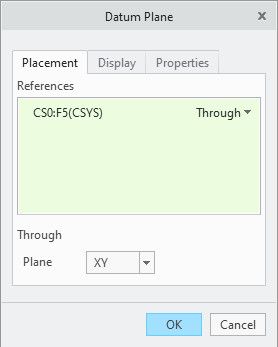

Then create a datum plane with the placement shown below

This plane will be flat to the screen at the current orientation of the model.

[VASILISKARASTER]

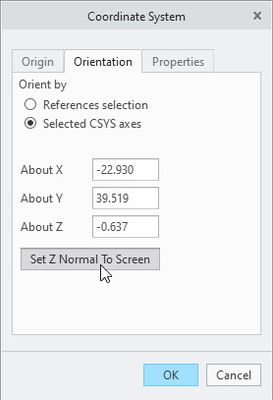

Thanks! I couldn't find that 'Set Z normal to screen' for new CSYS creation (i tried it using a point and the menu in Orientation tab doesn't have this option)

I needed to make an extrude cut (to a shape) perpendicular to a selected (random) orientation and export a rendered 2D tif/png
