Dimensions background

[Bryszard]

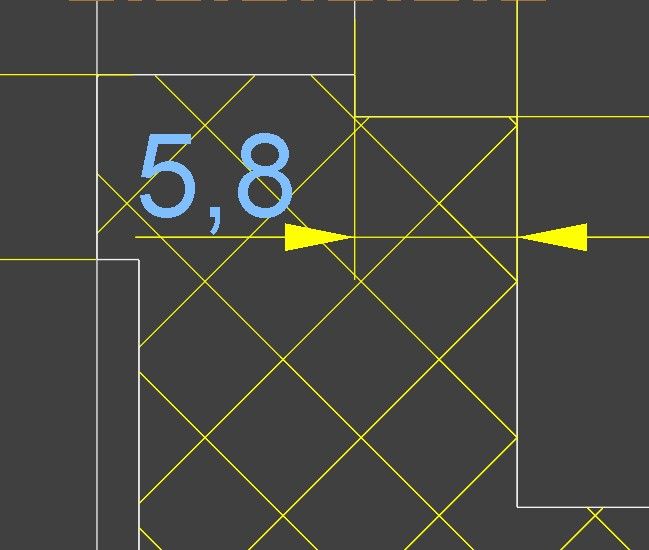

Hello, I'm having a problem with the dimension background. I want the hatch background to cover the hatch. Unfortunately, this can't be set, and the hatching under the dimension is still visible. I'm working in Creo 10.

[Van_AG]

there is dtl-option def_xhatch_break_around_text

set the option to yes

to do this

go in a drawing to File > Prepare > Drawing Properties > Detail Options

or edit your dtl-file in 3rd party text editor

the active dtl-file defined by the config file option drawing_setup_file

[MartinHanak]

Addition:

Also def_xhatch_break_margin_size drawing option can be set.

[Bryszard]

I must have something more messed up because it's not working

[MartinHanak]

---

@Bryszard wrote:

I must have something more messed up because it's not working

---

Hi,

create simple test model & drawing and try applying mentioned options. This test will show you whether this is a general error or an error tied to specific data.
