Flexible offset is changing chamfer dimensions with 0.00 Dimension entry.

Abhinand
14-Alexandrite

Flexible offset is changing chamfer dimensions with 0.00 Dimension entry.

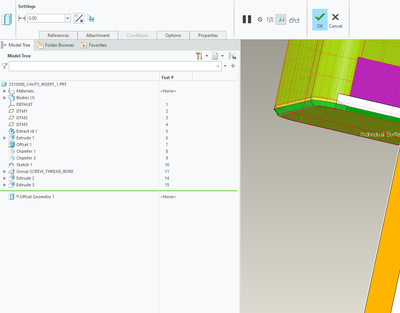

Flexible offset is changing the chamfer dimension from 0.50 to 0.30 with 0.00 offset. this should not happen.

I am using Creo 7.










4 REPLIES 4
Chris3
21-Topaz I
(To:Abhinand)

I would suggest you open up a ticket with PTC and have them review your part.

tbraxton
22-Sapphire I
(To:Abhinand)

Upload the problem part here. This will enable users to investigate the problem, a screenshot is not sufficient on this case to determine root cause.

========================================
Involute Development, LLC
Consulting Engineers
Specialists in Creo Parametric
Abhinand
14-Alexandrite
(To:tbraxton)

Hai,



please refer attached model. On further study I understand that rearranging the chamfer may help to avoid this issue. but still, this should not happen.

tbraxton
22-Sapphire I
(To:Abhinand)

It looks like a quick fix is to reorder the offset feature as shown in the video below. There may be a limitation with the algorithm causing the issue you have noted, I would suggest creating a support call with PTC and ask them to clarify the behavior. When you get an answer, please add it to this thread.



========================================
