GD&T control frames looks bad

CreoCarlos
6-Contributor

GD&T control frames looks bad

Hi all,

how can i get my composite control frames to look as intended? I am using Creo 7 professional.

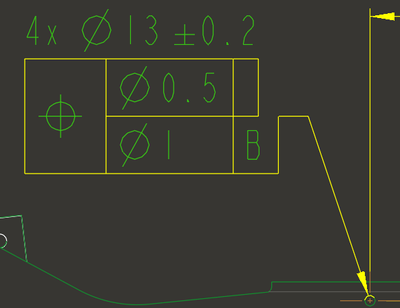

I get this in the drawing but it looks fine in the model





1 ACCEPTED SOLUTION

Accepted Solutions

Add this detail option to the drawing and update the sheet.

stacked_gtol_align no














View solution in original post

3 REPLIES 3

You are posting in the wrong group.  This group is for Creo Elements\Direct Modeling and not parametric.



Creo Element\Direct Modeling 20.6.0.0.0

Add this detail option to the drawing and update the sheet.

stacked_gtol_align no














Thank you, this was exactly what i was looking for !
