HOW TO FETCH DRAWING PARAMETERS IN DRAWING NOTE OR TABLE..?

NG_9196335
1-Newbie

HOW TO FETCH DRAWING PARAMETERS IN DRAWING NOTE OR TABLE..?

I am using Creo Parametric 3.0 M170

HOW TO FETCH DRAWING PARAMETERS IN DRAWING NOTE OR TABLE..?

Here are the errors that I faced
Need to fetch the drawing parameters such as "DRAWN BY"' ,"PART NUMBER" , "PTC WM LIFECYCLE STATE" etc. into Drawing.
1 REPLY 1
TomU
23-Emerald IV
(To:NG_9196335)

&<PARAM_NAME>:D



The ":D" on the end tells Creo to read that parameter from the drawing instead of the model.



Model Parameters:




Drawing Parameters:

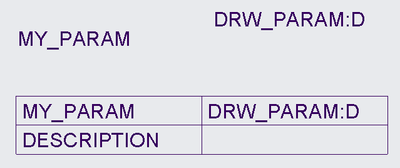

What gets entered into the notes and tables on the drawing:

(The ampersand in font of each of these is not displayed but it's there.)

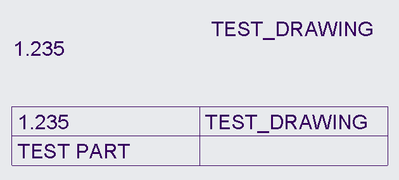

Final result:
