How can I bring back my default datum planes when creating a new combination state?

  • December 26, 2023
  • 3 replies
  • 2350 views

I am new to combination states. When I create a new combination state, all of my default datum planes get hidden and I can not unhide them using layers or the model tree. But I need them because I want to move dimensions to those planes. Does somebody maybe know how to bring back the default datum planes when you just created a combination state? Thank you for looking into my question!

Best answer by tbraxton

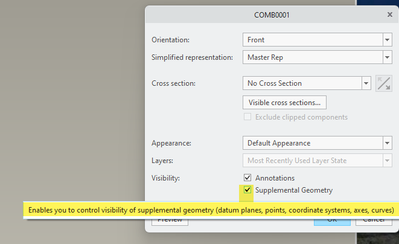

Add the datums to the combined view where you need to see them using supplemental geometry option.




3 replies

10-Marble
December 30, 2023

I am new to Creo, can you please tell me what a combination state is in Creo? , any link where I can get the use case of the combination state?

Thanks

10-Marble
December 30, 2023

I am new to Creo, can you please tell me what a combination state is in Creo? , any link where I can get the use case of the combination state?

Thanks

@AB_10071442

Michael
16-Pearl
16-Pearl
December 30, 2023

A combination state in Creo is a configuration of an assembly that represents a specific arrangement or combination of components. It allows you to define and manage different configurations of your assembly, such as different part instances, positions, or variations like a spring or latch, cam.

Michael Bourque
tbraxton
22-Sapphire II
22-Sapphire II
December 31, 2023

It should be noted that the use of combination states is not restricted to assembly mode or assembly models in Creo Parametric. You can add annotations to state in part mode.



To Create a New Combined View and Add Annotations (ptc.com)

tbraxton
22-Sapphire II
tbraxton22-Sapphire IIAnswer
22-Sapphire II
December 31, 2023

Add the datums to the combined view where you need to see them using supplemental geometry option.
