How do I assign insulation in elbow fittings in Piping extension (Creo 4.0)?

JohanHolmberg
4-Participant
4-Participant
‎Mar 22, 2019 04:45 AM
‎Mar 22, 2019 04:45 AM

How do I assign insulation in elbow fittings in Piping extension (Creo 4.0)?

Hi!

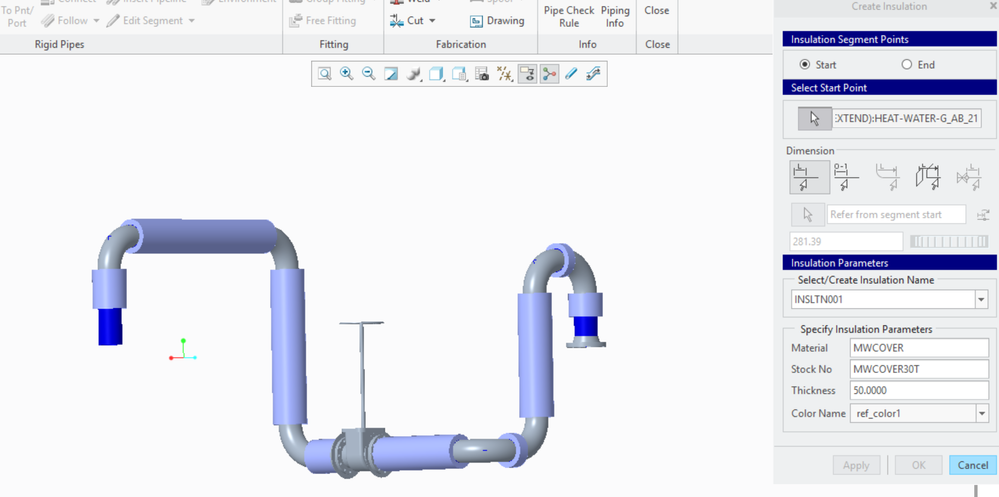

When I put insulation on my pipe as shown in pic (insulation is extra thick because of the visualization), it doesn´t put insulation on the fitted elbows, tees och valves.
How do I make this happen? I use non spec-driven piping.
Thankful for answers!

Regards Johan




Labels:
Notify Moderator
2 REPLIES 2
Patriot_1776
22-Sapphire II
22-Sapphire II
(To:JohanHolmberg)
‎Mar 22, 2019 09:44 AM
‎Mar 22, 2019 09:44 AM

Dunno, haven't used Pro/PIPING since the early 2000's when it was pretty basic, but, does it allow you to add insulation now?  If so, that's pretty cool!

Notify Moderator
piván
4-Participant
4-Participant
(To:JohanHolmberg)
‎May 29, 2020 09:22 AM
‎May 29, 2020 09:22 AM

Hi @JohanHolmberg !
Do you get any result in the last couple of years?



I'm struggling with the same problem besides I can't get the length of the insulation neither.

0 Kudos
