How to do a Pattern of Merge?

ToonBorghijs
4-Participant

How to do a Pattern of Merge?

Hey guys,



I recently started working with Creo 5.0 parametric for school, so I am very new to this (I do have a background in Autocad)



I stumbeld upon a problem whilst making a model.

I need to make a pattern of a merge from an extrude with a resolve.

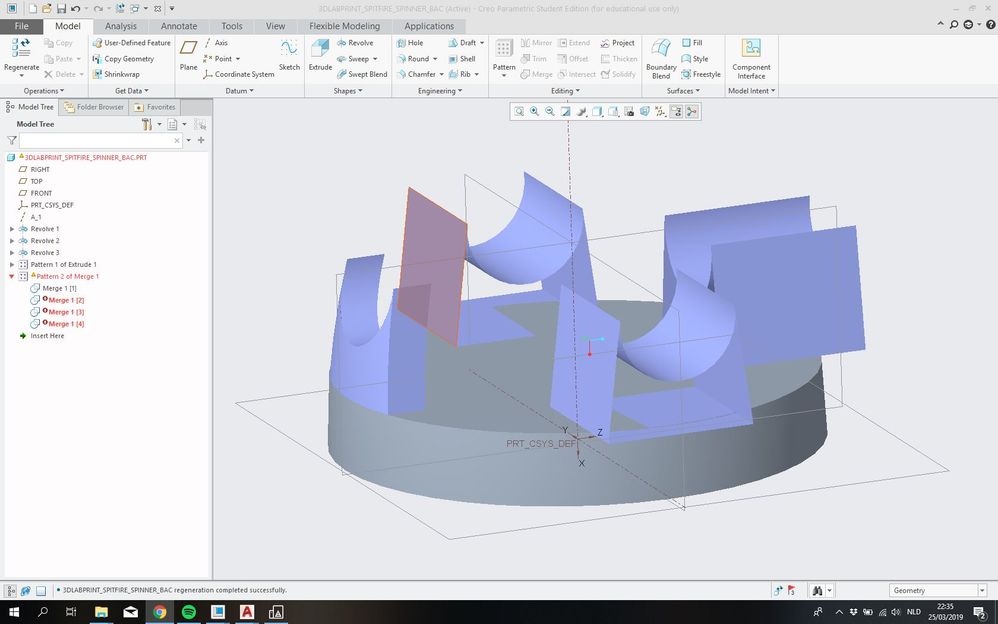

Error Pattern Merge.JPG

As you can see in the picture only one of the 4 tabs is how it should be. the pattern of the merge has some sort of error.



I tried to search for a similar problem but could not find one. The closest I foud was this video:

https://www.youtube.com/watch?v=PPXoEheaa74&t=8s but it didn't really work for me

Can somebody help me please?

Thanks in advance

How to fix errors when patterning a merged surface.Check out - CreoTutorial.com
2 REPLIES 2

Hi,

maybe Geometry Pattern will help.


Martin Hanák

You may try copying the quilt after merge and then pattern the copy.
