How to export a assembly file to step file with section view

[CC_9274627]

As the title,how to export a asm. file to step file with section view?
because use extrude to cut the view in assembly file needs take a long time to calculate,
if use section view will be convenient.

[remy]

Is the section concept even supported by the STEP file format itself?

[CC_9274627]

Yes, it is. cause I don't want coporating vendor see the 3D outline.
Do you have any solution could provide? or creo actually can't do this at all?

[remy]

You right about STEP supporting cross section indeed.
When searching the Help Center, you will find this section: http://support.ptc.com/help/creo/creo_pma/usascii/index.html#page/data_exchange/interface/Importing_Exporting_Cross_Sections.html

[CC_9274627]

Sorry,I don't understand the article in the link.

Could you list the step to teach me how to do it in creo? Please  >_<

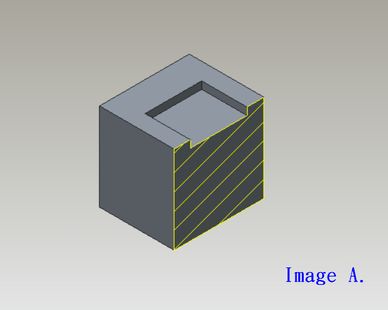

What I would like to do is exporting assembly file with the section view that I assigned (as image A),

and the other people(vendor) can't change or cancel the section.

[StephenW · Accepted solution]

Creo exports the cross section as a section that step understands as a cross section.

This is not the same as a cut that actually removes material.

I understand that an extruded cut takes a lot of time but a cross section will not do what you want it to do.

[CC_9274627]

Thanks for your reply 😭
