I need to extrude a wrapped sketch

철박_10230212
4-Participant

I need to extrude a wrapped sketch

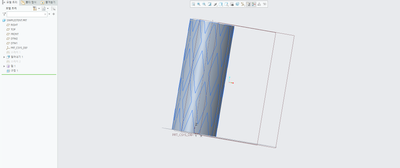

I fixed the sketch and successfully made a wrap, i want to extrude this exact shape outwards.
Is there a way to extrude this wrap?



4 REPLIES 4

Extrude is only a linear operation in Creo and does not work around a curved surface.  You will need to trim a surface by the sketch and thicken the surface (as shown in examples in previous discussion).  From your image, it appears you have a solid.  You can change the solid into a surface or copy the outside surface and remove the solid.


There is always more to learn in Creo.

If it isnt possible to extrude a wrapped sketch. Is it possible to curve a sketch then extrude it? or curve an existing extruded sketch?

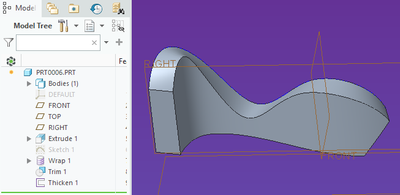

The closest thing to what you are describing is the thicken operation:

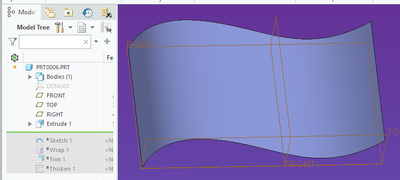

  1. Create a surface.
  2. Wrap a sketch onto the surface.

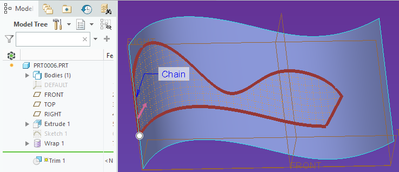

  3. Trim the surface by the wrap curves.
  4. Thicken the surface.
















There is always more to learn in Creo.

It looks like your other discussion is getting a lot more traction in getting an answer:



https://community.ptc.com/t5/3D-Part-Assembly-Design/I-m-trying-to-make-a-stent-but-creo-identifies-wrong-sketch-as-a/m-p/795087#M123867
