Import STEP created by NX 11

AlexK
15-Moonstone

Import STEP created by NX 11

Hi Community



I'm using Creo 11.0.1.0



When I import a STEP File that was created with Siemens NX 11, there are a lot of surfaces that fail.


By optimizing the import settings, the load time was improved, but the surfaces still aren't ideal.



Can anyone share a STEP Import Profile configuration?


Thanks for your help!



This is the STEP file header:

ISO-10303-21;
HEADER;
/* Generated by software containing ST-Developer
* from STEP Tools, Inc. (www.steptools.com)
*/
/* OPTION: using custom schema-name function */

FILE_DESCRIPTION(
/* description */ (''),
/* implementation_level */ '2;1');

FILE_NAME(
/* name */ 'FileName.stp',
/* time_stamp */ '2017-09-15T09:42:51+02:00',
/* author */ (''),
/* organization */ (''),
/* preprocessor_version */ 'ST-DEVELOPER v16',
/* originating_system */ 'SIEMENS PLM Software NX 11.0',
/* authorisation */ '');

FILE_SCHEMA (('AUTOMOTIVE_DESIGN { 1 0 10303 214 3 1 1 1 }'));
ENDSEC;



Best wishes



Alex

5 REPLIES 5
tbraxton
22-Sapphire I
(To:AlexK)

I do not have any Catia specific import suggestions. I would use the same STEP protocols on both ends if possible.



In some cases, you may get better results when importing if you match the absolute accuracy (units of length) in Creo to that of the Catia source file. So set the start part template you use in the import to match the absolute accuracy (resolution?) of the CATIA source model.

========================================
Involute Development, LLC
Consulting Engineers
Specialists in Creo Parametric
AlexK
15-Moonstone
(To:tbraxton)

The Problem is, that we really don't know anything about how the STEP File was created, beyond the header of the STEP file and that it is data from Mercedes Benz. I made an error thinking it was a CATIA file it is actually NX.

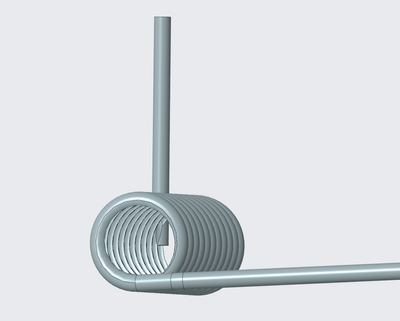

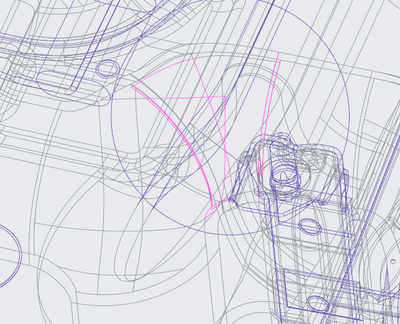

There are intersecting surfaces in the STEP models which cause the surfaces to fail.




We have a potential customer, who is thinking about switching to Creo from Catia, he says the STEP files open without problems in Catia and won't switch if Creo can't handle it.



StephenW
23-Emerald III
(To:AlexK)

I think it's a crapshoot when importing files for all software. I have access Solidworks and inventor and I use creo for my day to day work. Sometime when creo doesn't import nicely, I try in solidworks and/or inventor. Always mixed results and occasionally downright crazy results. Generally I think solidworks does the best for most imports. Usually a working surface model is ok for me so I'm not overly concerned if it doesn't solidify.

I don't have recent experience with NX imports and its been more than 30+ years since I spun the knobs on a catia system and to be fully honest, I only spun the knobs, I didn't actually do any work with it.

tbraxton
22-Sapphire I
(To:AlexK)

I concur with @StephenW . SolidWorks seems to solidify more STEP files than most CAD packages. There are 3rd party applications to "heal" STEP files as well, but I have no recent experience with them.

========================================
Involute Development, LLC
Consulting Engineers
Specialists in Creo Parametric
AlexK
15-Moonstone
(To:tbraxton)

Hi,



I agree with you both, nearly all complex assembly have some kind of problem, when they are imported.



There are just so many settings in the STEP Import Profile, that I thought maybe someone has found a optimal way to configure it.



The Import Data Doctor in Creo can Help, but our potential customer does not want to spend time on repairing the models.



Best wishes


Alex
