I assume that you need to create a curve along the silhouette of that shape as viewed from the mold opening direction, right?
You can use the surface trim tool to create that.

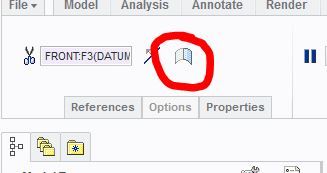

You can then use the flip to keep either side or both sides of the surface.
The resulting edge should be the P/L curve you want.
I assume that you need to create a curve along the silhouette of that shape as viewed from the mold opening direction, right?
You can use the surface trim tool to create that.
You can then use the flip to keep either side or both sides of the surface.
The resulting edge should be the P/L curve you want.
The problem is that it's not a plane but a curve. I'm aware that I can split the quilt with an extruded surface made from a curve or even better create the curve directly with the intersect command.

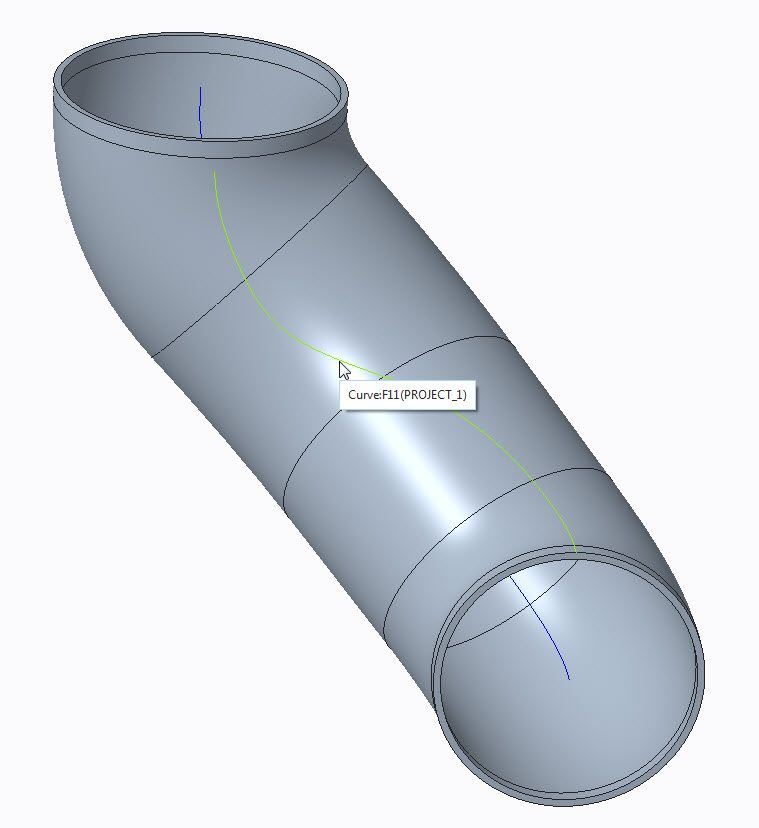

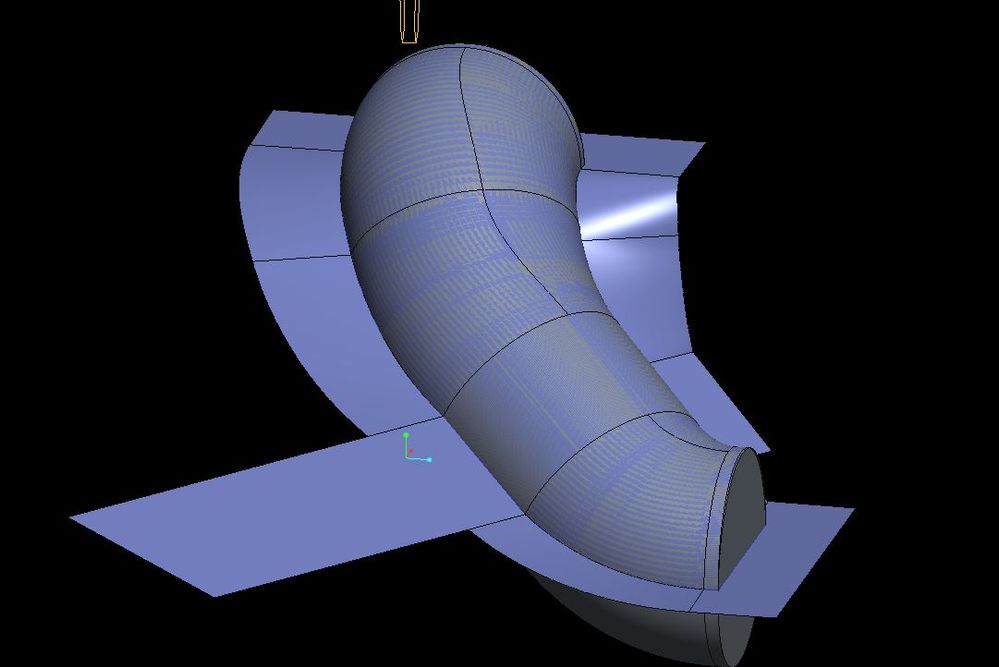

The main problem is that I can't create the split curve manually. It must be at the highest point of the swept surface which is a double curved surface. See attached pic which shows curve projected on surface. This curve is pretty close but not the exact split line.
The plane sets only the direction the mold halves will move. It should create a 3D edge curve along the divided copy of the surface. You don't create the curve - Creo does. You don't project anything. Creo uses the mold-split direction based on the plane you pick to find the edge you are looking for.
I'm aware of that too....but in this case it's not a plane. It seems very difficult to explain this in writing so if anyone has a possibilty to do this on the attached model please go ahead and do so.
Attached model is Creo 4.0 but I can recreate it in Creo 2.0 as well if necessary.
To hopefully make it clearer I will add another pic showing approximately the split plane in the mold. I need to split the halves in this direction due to bellows on top of hose.
Plane = vector. What vector will you move the two mold parts along to separate the mold?
Due to additional geometry on this part it will be the X-axis.

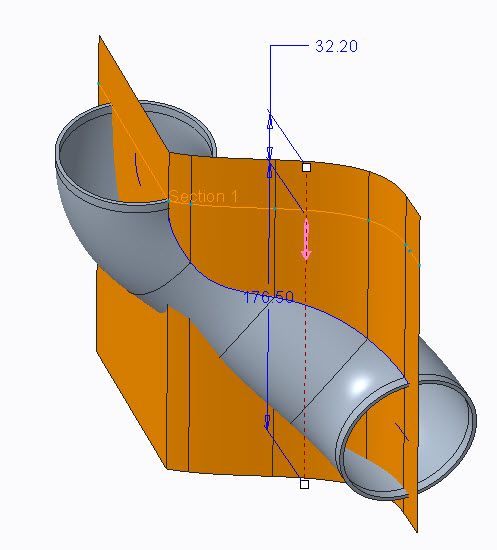

Neat...just fooling around real quick.
Thanks for the suggestion. Unfortunately this is a simpler intersect curve which makes it easier to create the split plane. Have a look at the original attached part.

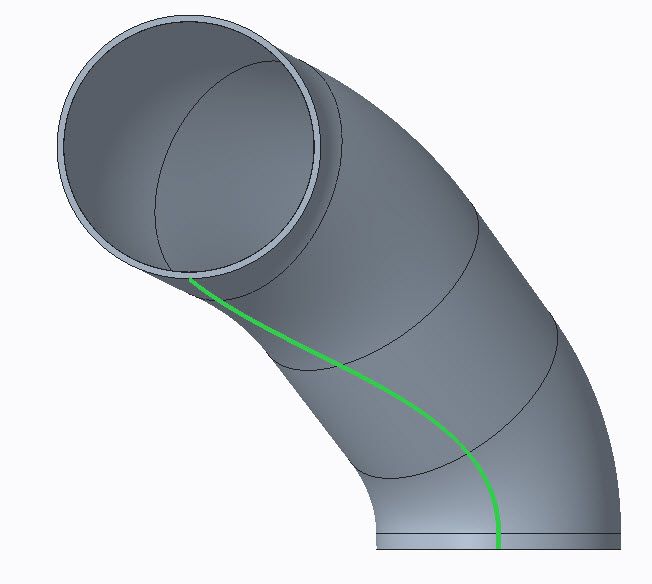

I'll try and explain a bit more what I'm looking for. First the projected 'approximate' intersect curve on surface. It's actually not that close.

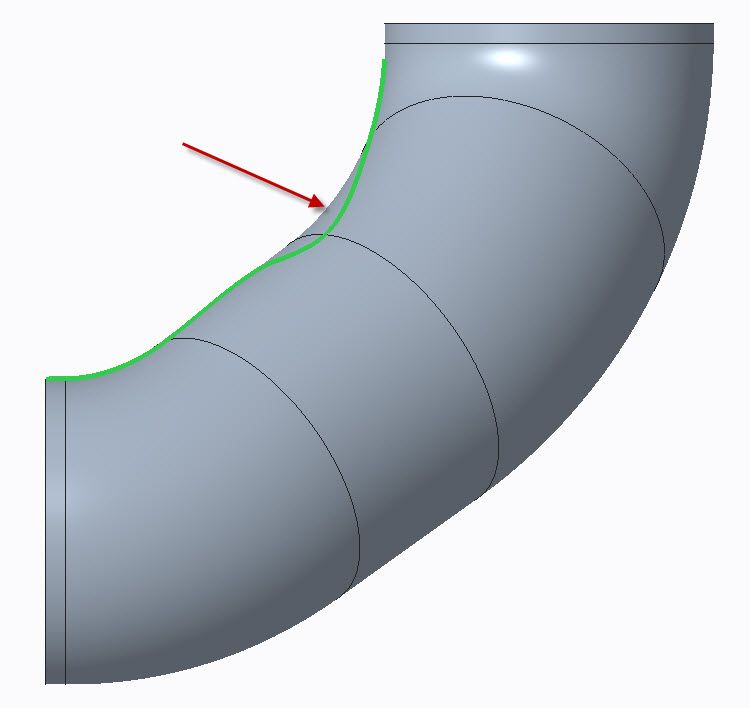

Looking at that curve from Right orientation, it needs follow the top silhouette curve.

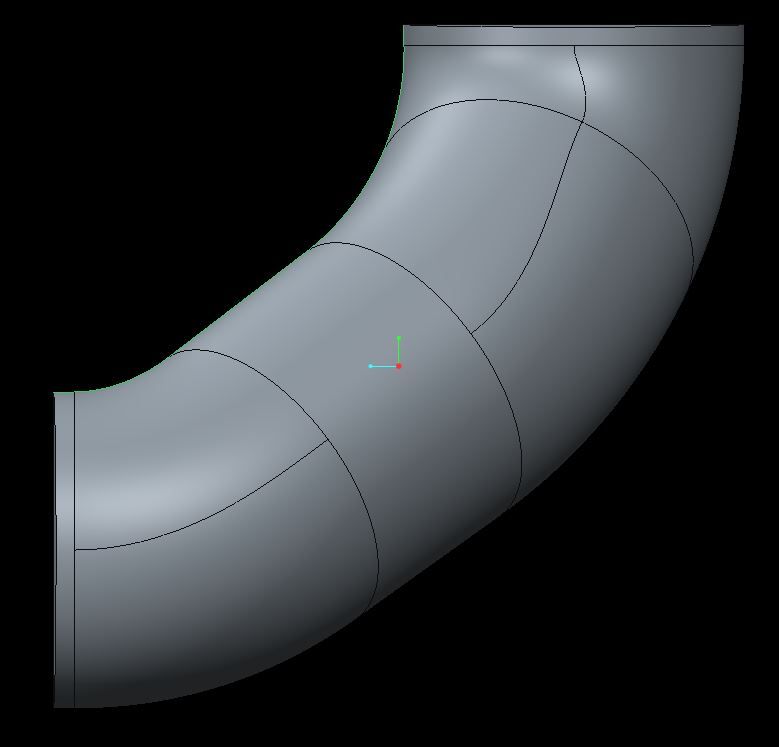

Looking at the same curve from Top orientation.

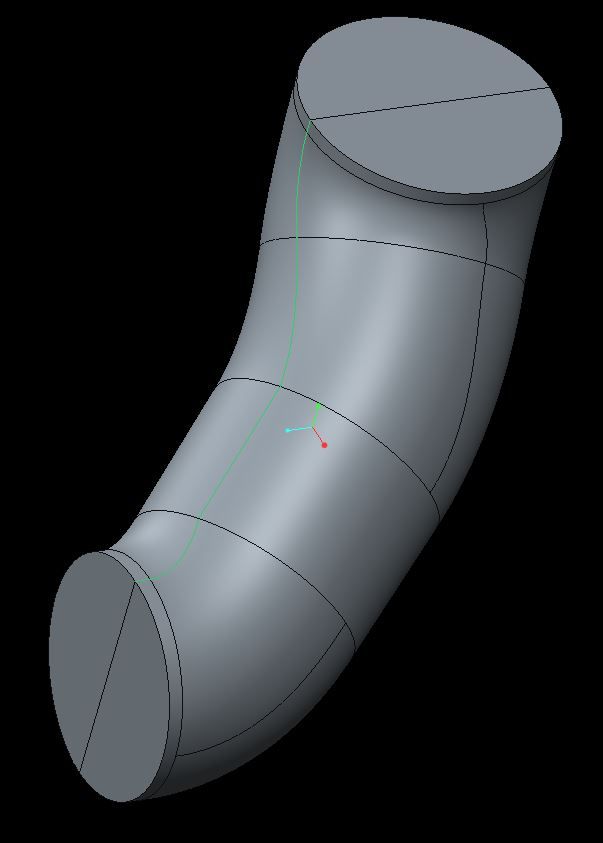

You want this?
YES!! How did you create that curve?
That is what Doug described. The only step I did past that is select the surface edge chain and created a reference curve.
Aaaah....now I see. Sorry my mistake for not going through the exact steps in Dougs proposal. I was under the impression from just reading it that the curve was manually created and didn't get the magic of the Silhouette Trim.
Thanks Doug for providing the correct solution!
@magnus.salomons wrote:
Aaaah....now I see. Sorry my mistake for not going through the exact steps in Dougs proposal. I was under the impression from just reading it that the curve was manually created and didn't get the magic of the Silhouette Trim.
Thanks Doug for providing the correct solution!
My apologies for not being engaged in the thread. The email notification deluge yesterday meant that the notifications from this thread got lost in the flood. Glad I could help, others could clarify and you ended up with what you needed..
