Quantity BOM balloons with qty from relations

SOLVED
Regular Member

Quantity BOM balloons with qty from relations

Hi, I use on drawing repeat region with column user defined parameter rel.qty. I need to display my qty parameter in quantity bom ballon.

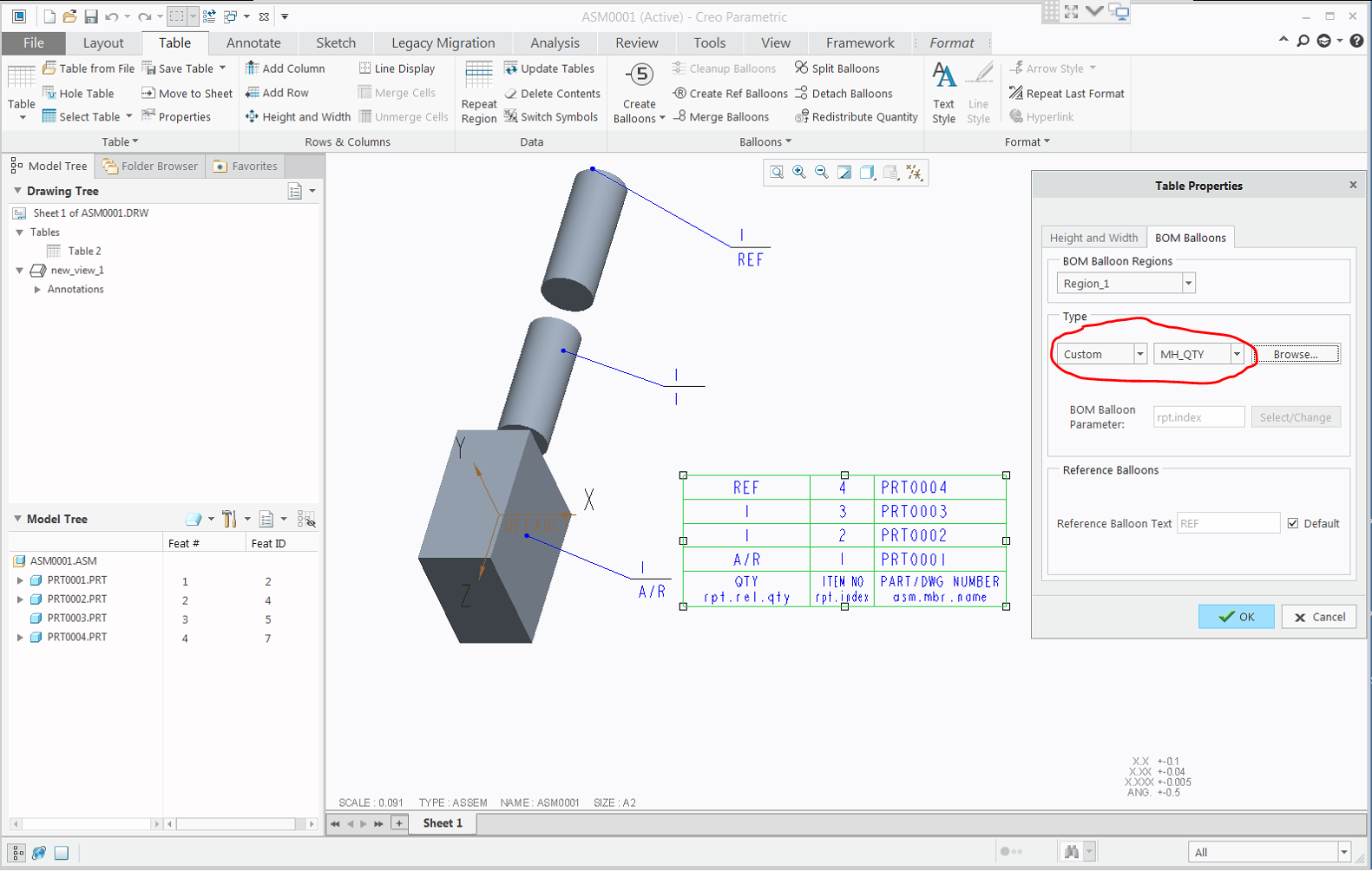

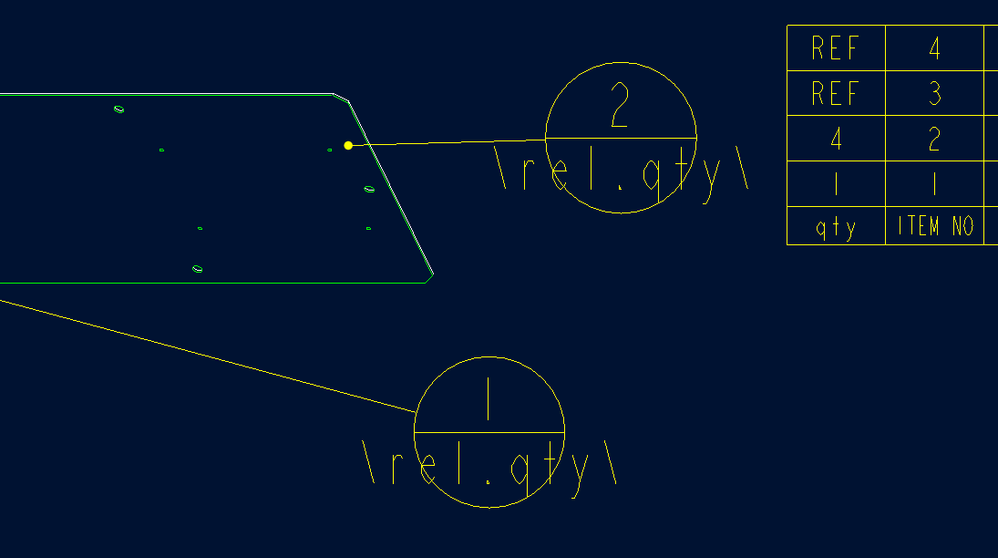

I tryed to modify bom balloon symbol, but it doesnt work. See attached picture.

Thanks for any ideas.




1 ACCEPTED SOLUTION

Accepted Solutions

Re: Quantity BOM balloons with qty from relations

9 REPLIES 9

Re: Quantity BOM balloons with qty from relations

Hi,

1.) please upload test data packaged in zip file

2.) if you want to use rel.qty you have to define qty parameter in repeat region relation




Martin Hanák

Re: Quantity BOM balloons with qty from relations

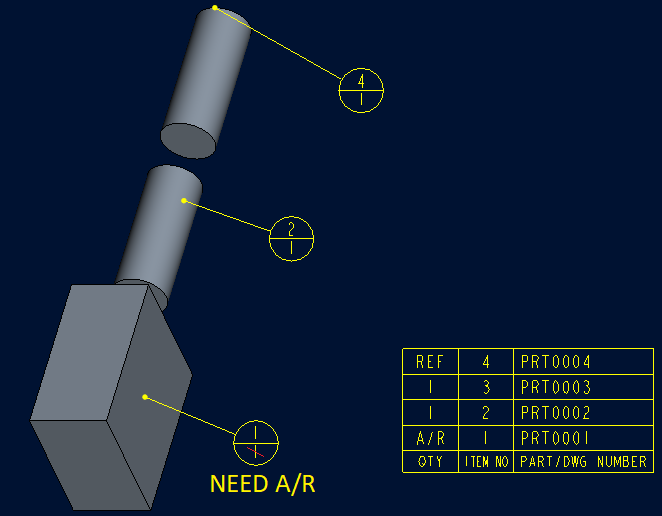

I send test data in attachment. I need to have same qty in bom balloon symbol as it is in table.




Re: Quantity BOM balloons with qty from relations

Hi,

you have to define BOM Balloon custom symbol. See attached zip file.


Martin Hanák

Re: Quantity BOM balloons with qty from relations

Re: Quantity BOM balloons with qty from relations

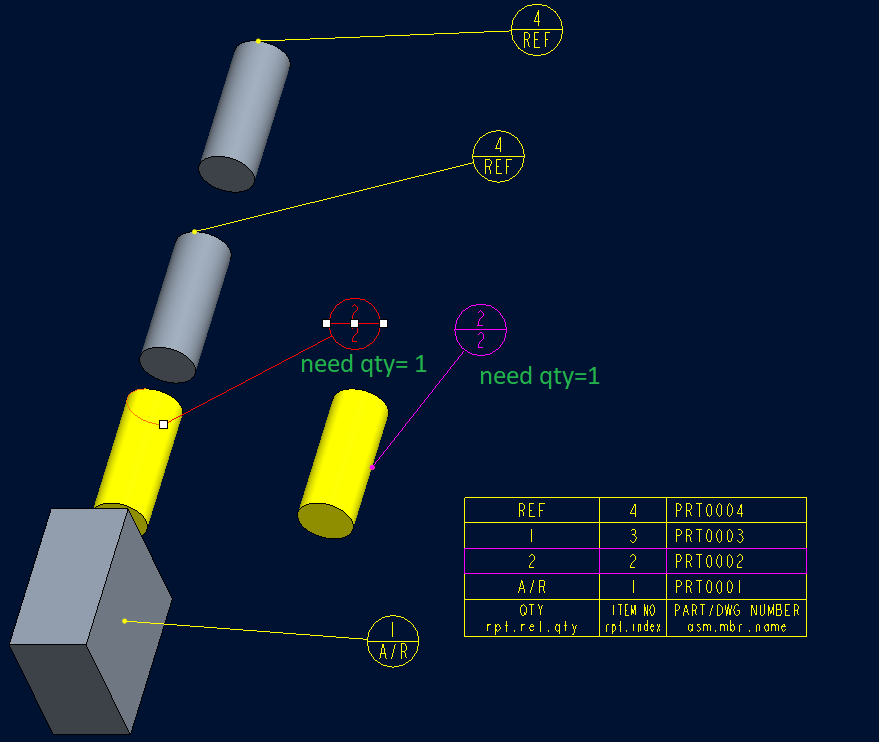

I found problem. If I have in assembly more same parts and each of them has balloon, than qty is wrong.






Re: Quantity BOM balloons with qty from relations

Hi,

again ... please upload test data packaged in zip file.


Martin Hanák

Re: Quantity BOM balloons with qty from relations

Sending data




Re: Quantity BOM balloons with qty from relations

Hi,

I think you have bad luck. It seems to me that Split quantity operation is related to rpt.qty parameter, only. You can contact PTC Support to be sure, that my guess is correct,


Martin Hanák

Re: Quantity BOM balloons with qty from relations

It works very good.

Thank you!
