Sketch dimensions not visible (Creo 7.0)

EH_9764897
4-Participant
4-Participant
‎Jan 10, 2021 05:42 AM
‎Jan 10, 2021 05:42 AM

Sketch dimensions not visible (Creo 7.0)

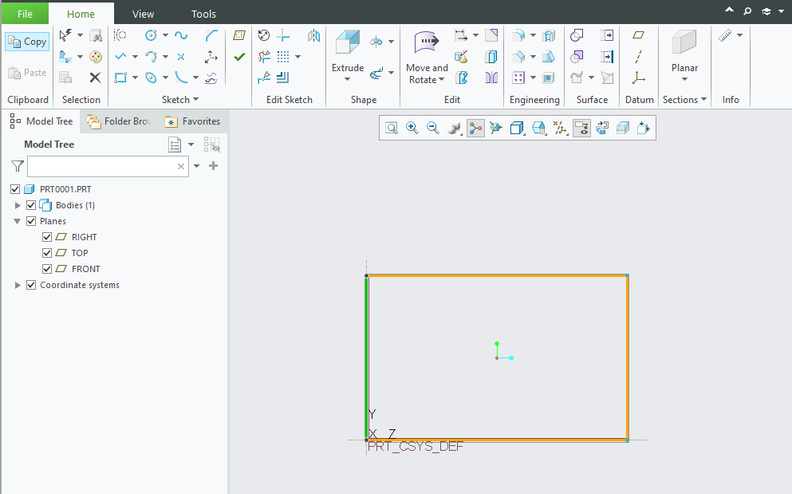

I have the student edition of Creo 7 and the sketch dimensions are not visible. Is there a way to toggle them on?






Labels:
0 Kudos
Notify Moderator
2 REPLIES 2
Mahesh_Sharma
22-Sapphire I
22-Sapphire I
(To:EH_9764897)
‎Jan 12, 2021 09:06 AM
‎Jan 12, 2021 09:06 AM

@EH_9764897



Seems "Dimension Display" is off. Commercial edition is as below, you may need to search "Dimension Display" using search command.




0 Kudos
Notify Moderator
MartinHanak
24-Ruby III
24-Ruby III
(To:EH_9764897)
‎Jan 13, 2021 05:03 AM
‎Jan 13, 2021 05:03 AM

@EH_9764897 wrote:

I have the student edition of Creo 7 and the sketch dimensions are not visible. Is there a way to toggle them on?






Hi,

please upload the picture of complete Creo window.


Martin Hanák
0 Kudos
Notify Moderator
