Square tubing

gshockxcc
7-Bedrock

Square tubing

It's been a while since I have done modeling in CREO.  What's the best way to model square tubing?  I thought there used to be a feature that you could extrude a line with a thickness to get simple square tube.  I am just trying to sketch up a simple weldment bracket, and I don't want to put a lot of time into the modeling.  It's not necessary.



Thanks in advance.





ACCEPTED SOLUTION

Accepted Solutions
tbraxton
22-Sapphire I
(To:gshockxcc)

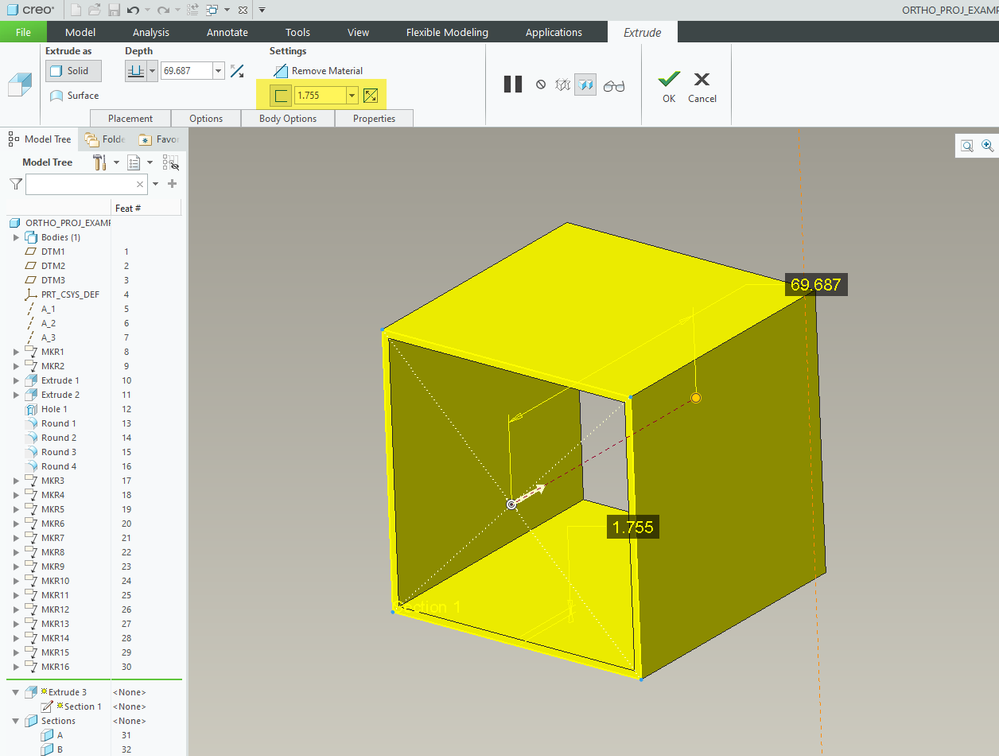

Extrude a thin protrusion is what you are looking for.






========================================
Involute Development, LLC
Consulting Engineers
Specialists in Creo Parametric

View solution in original post

3 REPLIES 3
tbraxton
22-Sapphire I
(To:gshockxcc)

Extrude a thin protrusion is what you are looking for.






========================================
Involute Development, LLC
Consulting Engineers
Specialists in Creo Parametric

Bingo!  That's it.  Thank you.

BenLoosli
23-Emerald II
(To:gshockxcc)

You can use the Framework extension to get your tube size and length against a single line.
