The threaded lines of the threaded holes inside the 2D drawing are displayed

LW_4603671
1-Newbie

The threaded lines of the threaded holes inside the 2D drawing are displayed

I am using Creo Parametric Release 4.0 and DatecodeM130
The threaded hole displays the ribbed line in the part drawing, but does not display it in the assembly drawing, how to make the threaded hole of the part display the ribbed line in the assembly drawing
-------------------------------------------------------------------------------------------------------------
Translated from Chinese to English using the PTC Translate tool(Done on 10th Oct 2022 at 9:03am IST by vnamboodheri)
Subject translated from "2D图纸里面螺纹孔的螺纹线显示" to "The threaded lines of the threaded holes inside the 2D drawing are displayed"
Body from 螺纹孔在零件图里面显示罗纹线,到总成装配图纸里面没有显示,如何让零件的螺纹孔在总成图纸里面显示罗纹线 to "The threaded hole displays the ribbed line in the part drawing, but does not display it in the assembly drawing, how to make the threaded hole of the part display the ribbed line in the assembly drawing"



1 REPLY 1
kdirth
20-Turquoise
(To:LW_4603671)

A couple screen shots would help to clarify what you are asking for.

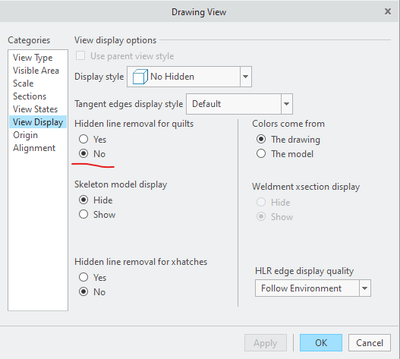

Assuming you are asking about cosmetic threads, in the drawing view properties, select No for Hidden line removal for quilts.





There is always more to learn in Creo.
