Unbend sheet metal

T_F
16-Pearl
16-Pearl

Unbend sheet metal

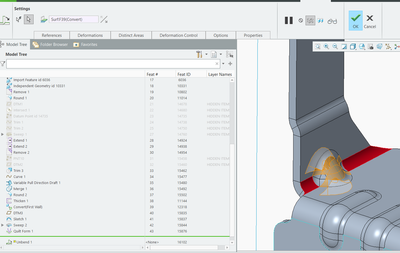

I've a part that I'm not able to unbend it.


The forming in the bend is giving some concerns. any idea?

Can you help me?



1 ACCEPTED SOLUTION

Accepted Solutions
tbraxton
18-Opal
(To:T_F)

An example part ( Creo 7) of flat of form across bend. Flat pattern is included in the part.






View solution in original post

9 REPLIES 9
tbraxton
18-Opal
(To:T_F)

The part you posted in not a sheet metal part, so the unbend and flatten are not available for use for this part. The geometry is brought in from a copy geometry feature. Look at the parent model for the copy geom and if it was created as a sheet metal part you can try to flatten that model.






T_F
16-Pearl
16-Pearl
(To:tbraxton)

The part was an imported model from other software

tbraxton
18-Opal
(To:T_F)

Have you tried flatten quilt functionality? The geometry looks to be composed of ruled surfaces so it should work.



https://www.ptc.com/en/support/article/CS107749

KenFarley
19-Tanzanite
(To:T_F)

That part looks like it is initially bent in the "normal" manner, but then crimped or stamped to put the strengthening feature in. Does sheetmetal handle that kind of deformation? I don't know that it would...

T_F
16-Pearl
16-Pearl
(To:KenFarley)

Exactly... I tried to unbend it, I had to remove the geometry of the form in the bottom bend.

I tried also to recognise that geometry as form. But no way to unbend

tbraxton
18-Opal
(To:T_F)

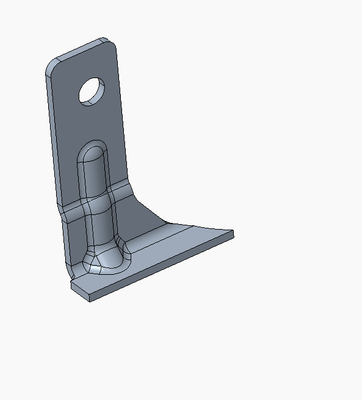

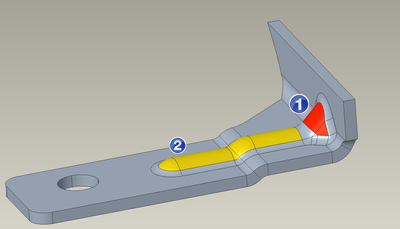

Perhaps if you create the geometry using two basic forms it may work. One a corner gusset (#1). An example of such a gusset is shown in the second second picture. Such a gusset will flatten using the flatten form function, so crossing a bend with the form is not an issue.











T_F
16-Pearl
16-Pearl
(To:tbraxton)

I've followed your suggestion, but still no able to unbend it.




Can you share the part that you shown in the second image?





tbraxton
18-Opal
(To:T_F)

An example part ( Creo 7) of flat of form across bend. Flat pattern is included in the part.






View solution in original post

T_F
16-Pearl
16-Pearl
(To:tbraxton)

The unbend command doesn't work well with some types of stamping forms. In this particular case, it doesn't work also.

But as you suggest the flat pattern works!



Thanks
