z-extension lines

Gerard_Moba
7-Bedrock

z-extension lines

I work with Creo 8.0.8.0

I have a model with annotations in the model.

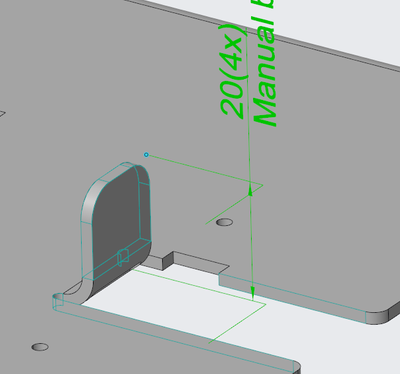

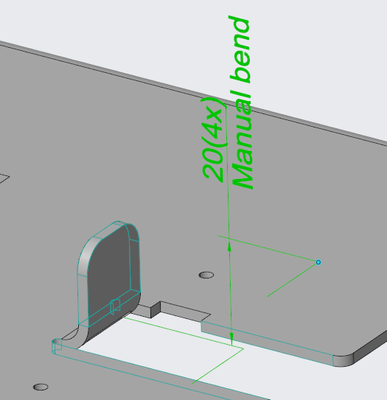

There is a z-extension line that moves with the end of the normal extension line.


But when I move the normal extension line to the other side of the annotation, the z-extension line doesn't go beyond the annotation.


Am I doing it wrong or is this a bug?
