Illustrate inset lines output

TomM
12-Amethyst

Illustrate inset lines output

Hi,



Is it a "feature", a bug or there's a recipe setting that I don't know of which makes inset explode lines completely different to their "normal" page view when exported?

Sorry about the colour choice but it's noticeable anyway.




In the page view all lines look the same (like the ones on the left in the picture). But when exported the inset lines get much thinner and densely packed.



Cheers,

Tom



8 REPLIES 8
VladimirN
24-Ruby II
(To:TomM)

 Hi Tom,



Please specify which version of the program are you using.

TomM
12-Amethyst
(To:VladimirN)

Hi,

7.0

VladimirN
24-Ruby II
(To:TomM)

@agarland Could you please take a look?

agarland
15-Moonstone
(To:TomM)

Can you clarify what you mean by 'completely different'?

Some images showing the difference would also be useful.





TomM
12-Amethyst
(To:agarland)

Hi,



Apparently I did not follow up on the matter at the time. My apologies.

After upgrading to V 10.0 the issue struck me again. Here's an example, which pretty much speaks for itself.

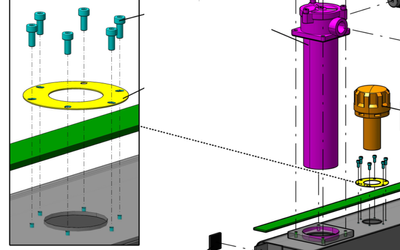

The view in Creo Illustrate canvas: 

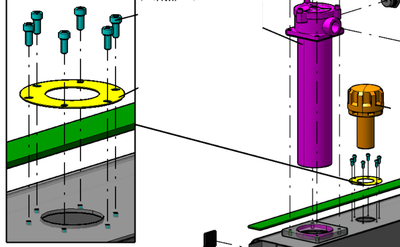

The outcome in PDF (exported as an image in PDF format with 280 dpi):


It's as if insets (and leader lines) were affected by the dpi scaling but explode lines in the canvas were not (even weirder cause they're the same entity). You can clearly see that explode lines in the inset and the leader line are scaled when being converted but nothing in the main canvas does. (It's not a 2D figure).

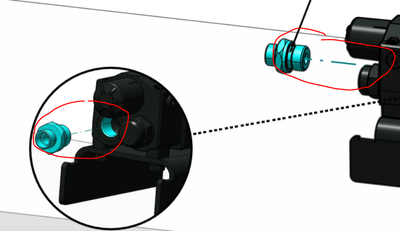

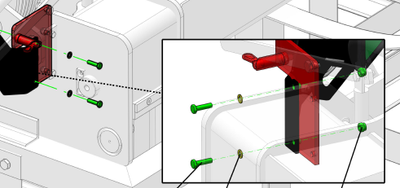

A different view, where we need to choose to either create absurdly thick in-canvas explode line for its inset to be visible or keeping its inset barely recognizeable:


Best regards

agarland
15-Moonstone
(To:TomM)

Hi Tom,



I would suggest contacting Tech Support so this issue can be investigated properly.

The explode lines shouldn't have a different pattern (dash length) in the inset view.



Regards

Adrian

TomM
12-Amethyst
(To:agarland)

Hi,



I'd say so too. I'm fairly sure it's a bug or unintended behaviour but I'd like someone to check in their software if this is a thing (I checked in mine - versions 7.0 and 10.0 + in multiple clean installs as well).



Thanks for your oppinion!

TomM
12-Amethyst
(To:TomM)

Could someone reproduce this behaviour in their (some other than 7.0 or 10.0) version, please?
