Creo Simulate - static analysis - links and constraints problem

  • July 12, 2021
  • 3 replies
  • 10379 views

Hi everyone,



I am currently trying to apply a force on an assembly, a delta robot, more precisely on its end-effector. The problem is that the stress/force is not passing through the different parts. It is like if the static analysis is only considering the part I applied the force on.



I have simplified this first analysis by bounding some parts, the one that are screwed together.

I have also not included the bearings for all joints, the idea was to link the parts without the bearings. For that, I have used the "Function Pin" of the constraints. The first joints of the delta robot are blocked axially and radially, then, all other joints are just blocked axially.

This method works on Catia V5.



Attached to this post:

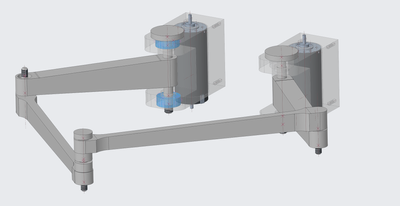

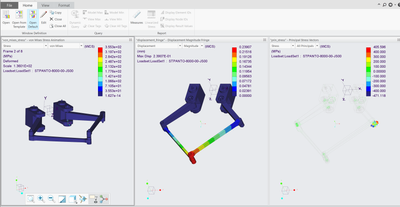

creo-study1-1 and creo-study1-2 : show the result of this wrong analysis.

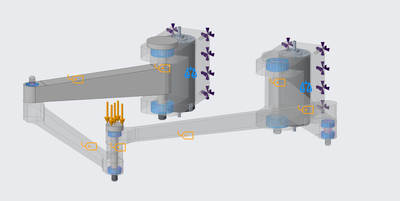

creo-study1-3 : shows the way I have constraint the joints, which have 2 bearings.

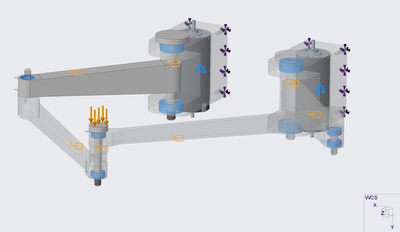

catia-study1-1 : this is the analysis on Catia V5



Anyone can help me, please?



Regards,

Julien



3 replies

V
24-Ruby III
VladimirN24-Ruby III
24-Ruby III
October 15, 2021

Can you specify the version of Creo Simulate?

U
UniMaker1-VisitorAuthor
1-Visitor
October 15, 2021

it is creo parametric 5.0.5.0, I do not know where to find creo simulate version.



regards,



V
24-Ruby III
VladimirN24-Ruby III
24-Ruby III
October 15, 2021

@hhiller @jchelle @aoualim Could you please also help with this problem?

A
aoualim17-Peridot
17-Peridot
October 15, 2021

Hello All,



It seems that it is regarding a small load maybe you can edit the legend in Result windows by increasing the min value

Otherwise

Check if die assembly component constraint blocks the load distribution

Did you try with contact between touching components?



Best Regards

Oualim

    U
    UniMaker1-VisitorAuthor
    1-Visitor
    October 15, 2021

    Hello,



    I did try to modifiy the scale, but the behavior remain unchanged.



    All touching components have a connection called "bonded" (Refine Model - Interface - bonded between two components).



    This concept works on Catia, there might be another way to do it on Creo!?



    regards,

    Chris3
    Chris321-Topaz I
    21-Topaz I
    October 15, 2021

    It appears to me that you are not setting up your constraints correctly. You should not have displacement constraints on the joints. If you need to release degrees of freedom at the joints I would suggest using beams to connect your joints and then releasing whatever degrees of freedom you want with the beam ends.

      U
      UniMaker1-VisitorAuthor
      1-Visitor
      October 15, 2021

      Hello,



      In the Beam definition, I cannot define all the surfaces that would interact through the bearing. How would you do it.



      In Catia, I have never included the bearing, a connection was defined manually, and I was then specifying that this connection is a rigid virtual connection (with the rotation unlocked). Then, only the created parts were deforming.



      regards,

      Chris3
      Chris321-Topaz I
      21-Topaz I
      October 15, 2021

      You create a point and then create a rigid link (RBE2) from the point to the surfaces you want. You do this on two ends. Then you create a beam element that connects to the points and release the degrees of freedom of the beams as needed. Keep in mind that the X beam vector is along the axis of your beam.

      http://support.ptc.com/help/creo/creo_pma/usascii/index.html#page/simulate/simulate/modstr/idealizations/reference/specng_ydir_beam.html
