Thermal Analisys Steady State, Thermal Diffusivity

[SM_13137941]

how creo 7 works in thermal analisys in a steady state ? I mean as input for thermal load i've to consider Heat Flux (W/m^2). This means that load is time dependent. I use a load of 5000W/m^ 2 on a steel structure with 30mm thicknes and i get more than 170°c of temperature. Teoric calculation give me 21 °c after 20 seconds.

Does creo consider Fourier time to get Steady State: t= Thickness^2/(Thermal Diffusivity) ? and if it consider that how does it calculate that. Because in material specification ther is not thermal diffusivity value.

thanks for answering

[skunks · Accepted solution]

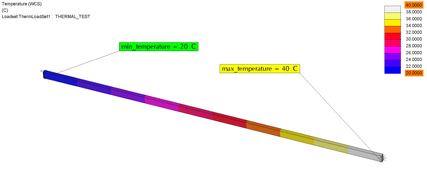

Here is my example
(PDF is in German)

[anursingh]

Hi @SM_13137941,

I wanted to see if you got the help you needed.

If so, please mark the appropriate reply as the Accepted Solution. It will help other members who may have the same question.
Of course, if you have more to share on your issue, please pursue the conversation.

Thanks,
Anurag

[SM_13137941]

Hi Anurag

Thanks for your email. I thought I already marked the accepted solution, but I just found out I forgot to do it.

Now it is marked. Please, text me if there is something missing.

Wish you all the best

Thanks

Stefano

[anursingh]

Thank you..
