Triangular load on a circular beam

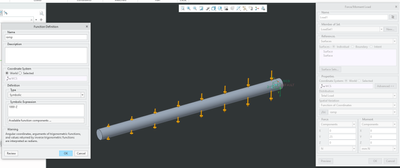

Hi guys, I am trying to load a distributed load on a circular beam of outer diameter 15mm and inner 13mm and length 1m. The load has got to start from 50N and linearly decrease to 0. I have tried using the function definition to apply a function of 50-50*X, however the load seems to be evenly distributed. Any ideas thanks very much
- Labels:
-
Creo Ansys Simulation
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
The load looks like a moment is defined not a force?? Every point along your beam is at the same WCS X value so that is why it is uniform.
suggestions:
If WCS at right end with +Z axis going left along beam...
Need: Total Load W on the force Y component.
Distributed load per unit length notated as w.
if unit system in meters , w=50N/m, W=50*1/2=25N, f(x) = 1-Z
if unit system in millimeters, w=0.05N/mm, W=0.05*1000/2=25N, f(x) = 1000-Z
Note: Total magnitude W = w*L / 2, where w is the peak force/length.
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
Hi @CH_10266577,
I wanted to follow up with you on your post to see if your question has been answered.
If so, please mark the appropriate reply as the Accepted Solution.
Of course, if you have more to share on your issue, please let the Community know so that we can continue to help you.
Thanks,
Anurag
