Create Planar X_sections without "0" dimensions

Create Planar X_sections without "0" dimensions

Planar Sections created with Creo Parametric 2.0 generate "0" dimensions after datum plane selection.

As a consequence, "Show Annotations" action in Drawing Views displays lots of unwished "0" which renders more difficult the choice of dimensions to keep.

Planar X_Section zero dimensions.jpg

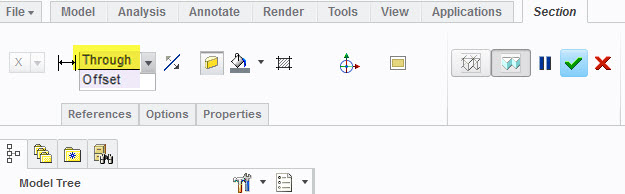

Please add “Through” by default in dimensioning box (and “Offset” if you need to add dimension)


- No  “0” dimensions by default when datum plane is selected

- If dimensioning is necessary, create an offset plane.

3 Comments
Aquamarine

Option has been added in Creo 2.0 M120

    planar_xsec_default_type  through

Thanks

Community Manager
Status changed to: Acknowledged

Alexandrite
Status changed to: Delivered

Per Nicolas' comment, this can be accomplished through the config option:



planar_xsec_default_type through



Luke
