for today current options are available for the visualization of the border of view detailed.

detail view _2.JPG

  Nevertheless in certain mechanisms, it would be better to put there a border in the form of rectangle with rounded up corners or oblong

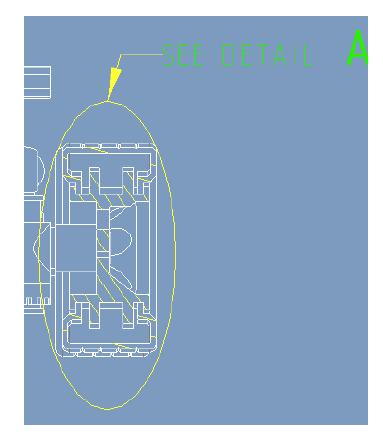

Below, an ellipse was defined as example.

Problem is that the ellipse does not fit general form well of the mechanism.

detail view _1.JPG

It is necessary to apply for improvement in order to choose a rectangle or an oblong rounded corner within detailed views.

3 Comments
Amethyst

How about being able to sketch any shape you want using the draft entities and then have Creo use that as a boundary?

Community Manager
Status changed to: Archived

Aquamarine

Yes, we need spline sketch functionality with snapping to geometry. If you modify geometry in 3D, this detail boundary must moving too.
