Multiple leader lines for dimensions

Multiple leader lines for dimensions

Status: Archived Submitted by 4-Participant on ‎Jan 11, 2017 04:44 AM
3 Comments (3 New)

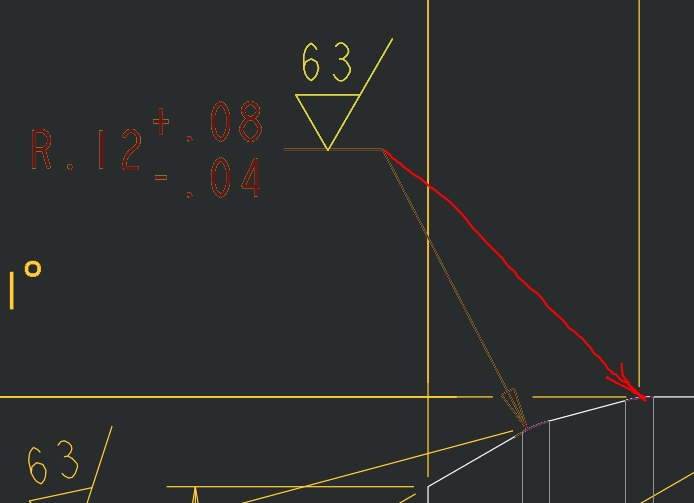

Please add a option to insert multiple leader lines for shown/created dimensions. In below picture R.12 applies at two places which was created using one round feature. To achieve this in Creo 2.0 I will have to create a empty note with leader line and align with the dimension.



Thanks

See more ideas labeled with:
3 Comments
StephenW
23-Emerald II
23-Emerald II
‎Jan 11, 2017 07:35 AM
‎Jan 11, 2017 07:35 AM

This is a duplicate. Please see MULTIPLE ATTACHEMENTS FOR RADIUS OR CHAMFERS DIMS

Toby Metcalf‌

Tmetcalf
Emeritus
‎Jan 11, 2017 08:25 AM
‎Jan 11, 2017 08:25 AM

Thank you Stephen Williams

Please vote via the link referenced above.

Best,

Toby

olivierlp
Community Manager
Community Manager
‎Jan 04, 2022 10:11 AM
‎Jan 04, 2022 10:11 AM
Status changed to: Archived

Hello,

We are archiving your idea as part of a general review. This action is based on the age of your idea and the total number of votes received, as per this announcement.

You can always post a new idea with all the details required in the form.

Thank you for your participation.
