Regular Rectangular edge Pattern

Dear all,

did you ever had the necessity to create a rectangular flange drillet with a constant step from a specific distance from edge where first and last step are different from middle steps but have to be equal and equally calculate depending of available space?

Example :

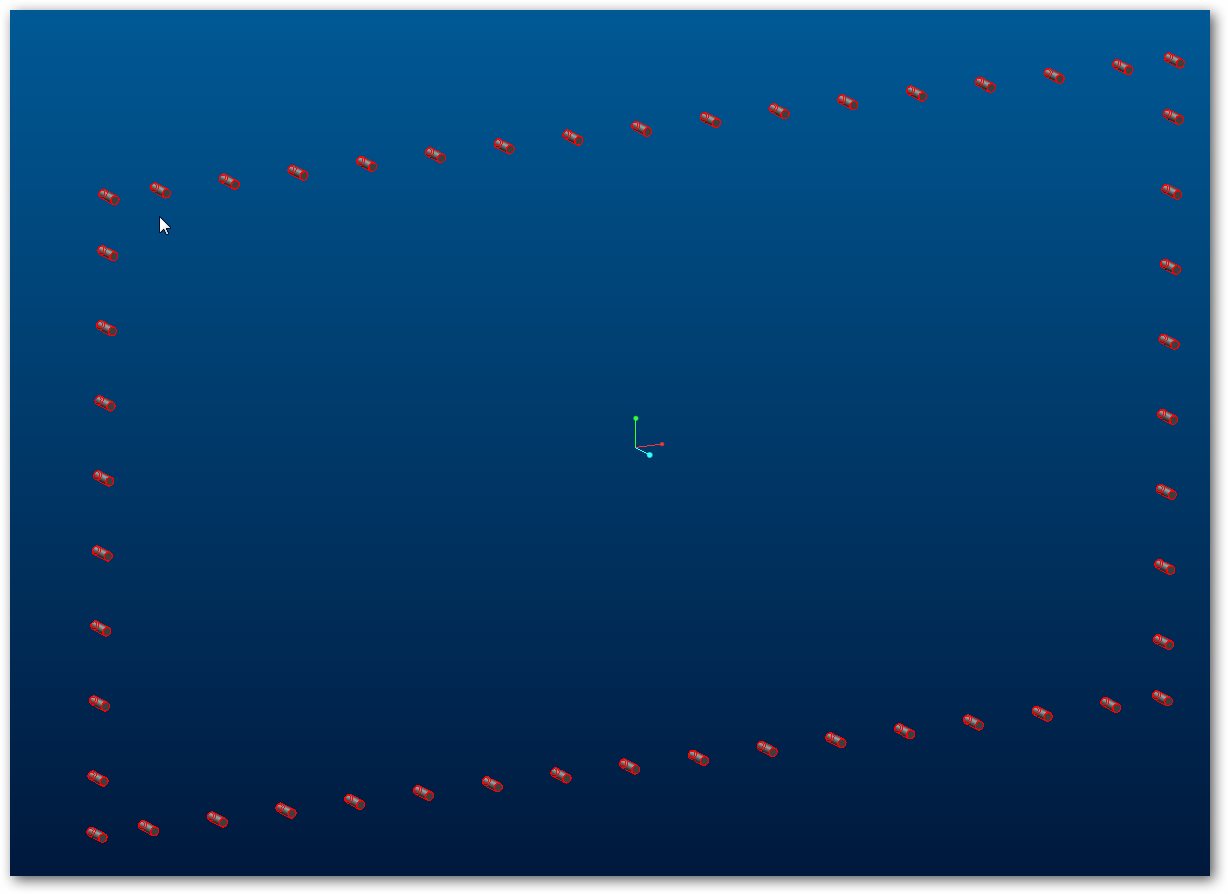

**1) drilling of rectangular shell :**

...now I'm doung this with my UDF...but is incredible that CreoParamteric can not do a patter, based on a rectangular sketch for instance with defined step distance from user, by equally distribute first and last steps (in this case should be helpful a parametr to define which is the minumun acceptable firts/last dimension >> i.e. minumun 1/2 of defined step distance ).

By defining minimun/maximum allowed first/last step distance the system can calculate number of "entire" middle steps of the pattern.

This should be done indipendently both for "X" and "Y" dimensions of rectangle.

**2) Same concept for pattern used to distribute parts/assemblies ... i.e. studs oe crews :**

Thanks,

BR
