Request to improve the angle dimensioning.

Request to improve the angle dimensioning.

I would be glad if the angle measuring could be improved.

I have a hard time always when I need to use the Adjacent + or -.
Either I choose the wrong option + / - or I select the elements in the wrong order.

I'm probably too stupid

In other CAD you can select the elements in any sequence and when you move the cursor arround the corner the system shows a graphical feedback of the result.

This is a clear and simple action and does not require a large reflection.


Another option/feature.
Click the intersection point, the direction of the dimension helpline, 2.Element and place the dimension.

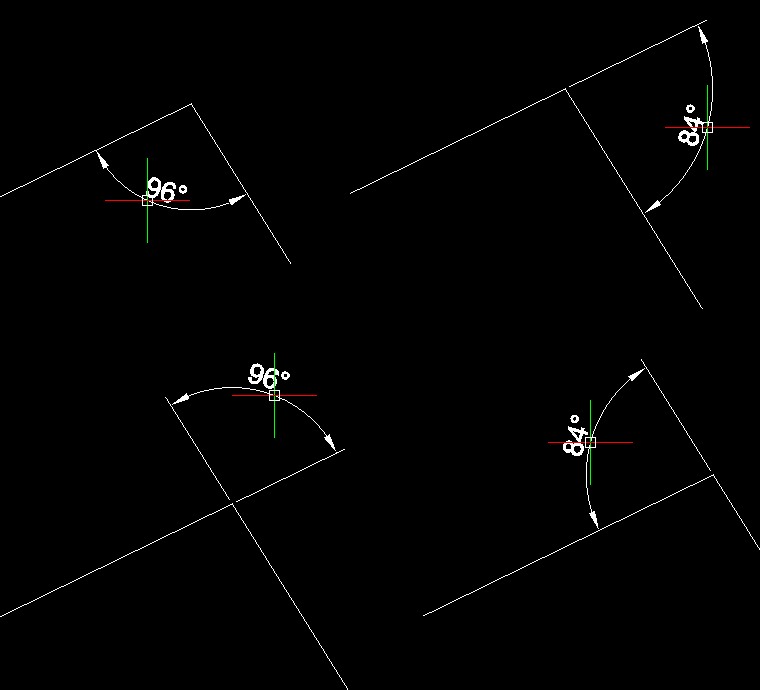

Examples come from DraftSight

2 Comments
Newbie

That would be very nice.

Community Manager
Status changed to: Acknowledged
