Standard hole dimension cannot display the pitch of the thread in Creo Parametric

Standard hole dimension cannot display the pitch of the thread in Creo Parametric

Status: Acknowledged Submitted by 14-Alexandrite on ‎Oct 23, 2014 02:33 AM
10 Comments (10 New)

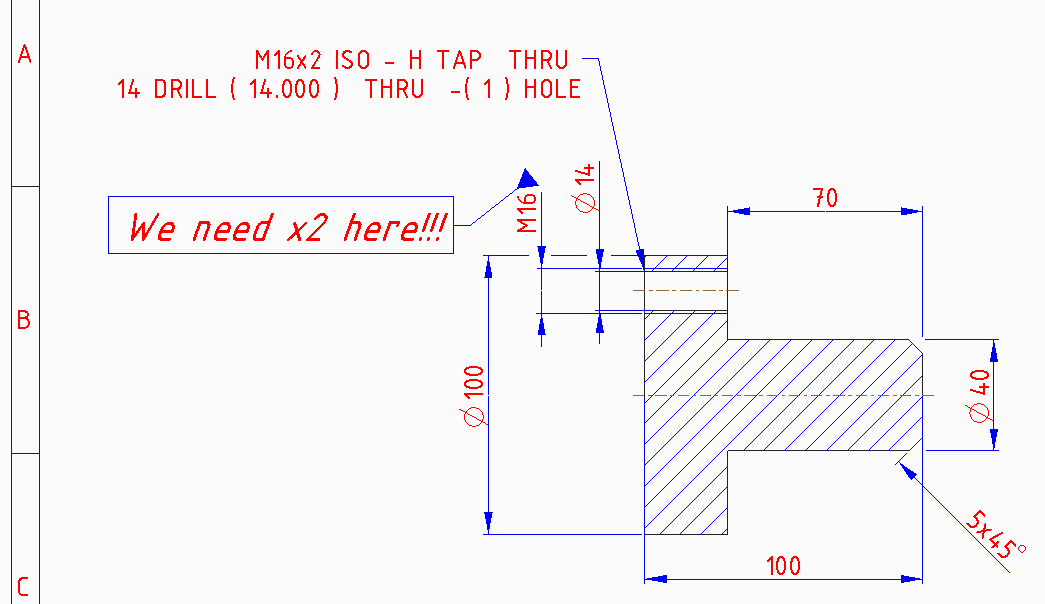

Standard hole dimension cannot display the pitch of the thread in Creo Parametric.

Standard ISO hole thread property can only be displayed in the note, not the hole dimension.

At this time you must set pitch as text manualy.

SPR 2108232


ReleaseStatusDatecode
Creo 3.0Evaluating-
Wildfire 5.0Evaluating-
Creo 1.0No Plans to Fix-
Creo 2.0Evaluating-
No Plans to Fix-


See more ideas labeled with:
10 Comments
DavorGranic
14-Alexandrite
14-Alexandrite
‎Oct 23, 2014 02:44 AM
‎Oct 23, 2014 02:44 AM

Good idea!

JiriKrenek
1-Newbie
1-Newbie
‎Oct 23, 2014 06:22 AM
‎Oct 23, 2014 06:22 AM

Yes, good idea!

JonathanHodgson
11-Garnet
11-Garnet
‎Mar 03, 2015 03:55 AM
‎Mar 03, 2015 03:55 AM

You can manually add the pitch parametrically, in the form:
M@Dx&PITCH:FID_nnn

where nnn is the Feature ID of the hole.  Optionally you can add [.2] to the end to display all pitches to 2dp, e.g. M6x1.00, M8x1.25, M10x1.50.

However, I agree this is a real PITA (partly because you have to jump back to the model to find the FID of the hole) so some form of default option to do this would be great.

kfilurin
12-Amethyst
12-Amethyst
‎Jan 06, 2016 07:11 AM
‎Jan 06, 2016 07:11 AM

It's not a "good idea", it's obvious idea and i don't understand why it's still didn't realize in Creo(

PTCModerator
Emeritus
‎Jun 14, 2018 02:18 PM
‎Jun 14, 2018 02:18 PM
Status changed to: Acknowledged

telser
3-Visitor
3-Visitor
‎Mar 28, 2019 09:13 AM
‎Mar 28, 2019 09:13 AM

Wow that's fantastic!

We need it too.

Behnam
6-Contributor
6-Contributor
‎Sep 11, 2019 07:42 AM
‎Sep 11, 2019 07:42 AM

Can't believe this is not yet implemented...

thoffmann-3
4-Participant
4-Participant
‎Nov 05, 2019 03:57 AM
‎Nov 05, 2019 03:57 AM

In case this will be function in Creo:

It is usual to show the pitch in the dimension  only  in case it is not a rule thread (DIN 13-1).
That means for standard thread ..., M6x1, M8x1.25, M10x1.5, ... M16x2, ... it is normaly  not required  to show the pitch value in dimension.

But for other pitch it is required to show the pitch value in a engineering specification (drawing) (e.g. ..., M10x1, ..., M16x1.5, M18x1.5, ...) .

NicolasBourgeoi1
13-Aquamarine
13-Aquamarine
‎Apr 01, 2022 05:40 AM
‎Apr 01, 2022 05:40 AM

8 years after the opening of this idea, what is PTC's plans to implement this necessary functionality ?

Behnam
6-Contributor
6-Contributor
‎Apr 01, 2022 06:17 AM
‎Apr 01, 2022 06:17 AM

I do have an update on this - reached out to the PTC support around a month ago about it. The response was that they do not deem it necessary to implement, but that I'm more than welcome to upvote the already created product enhancement idea in the community forums (this thread). If it gets enough likes it'll be taken into consideration - pinky promise
