Surface preview mesh density or colour change required

Surface preview mesh density or colour change required

I wish to have influence on system value for mesh representing the trimed or merged surface.

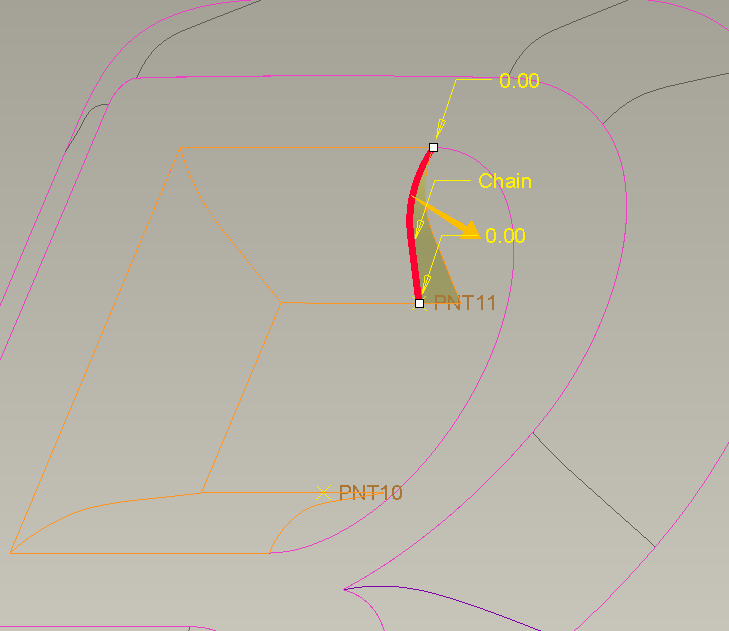

I work generally on smal suraces representing embossings on products and during merge or trim which part of surface as a result is sometimes completely invisible on shaded model - see examples:

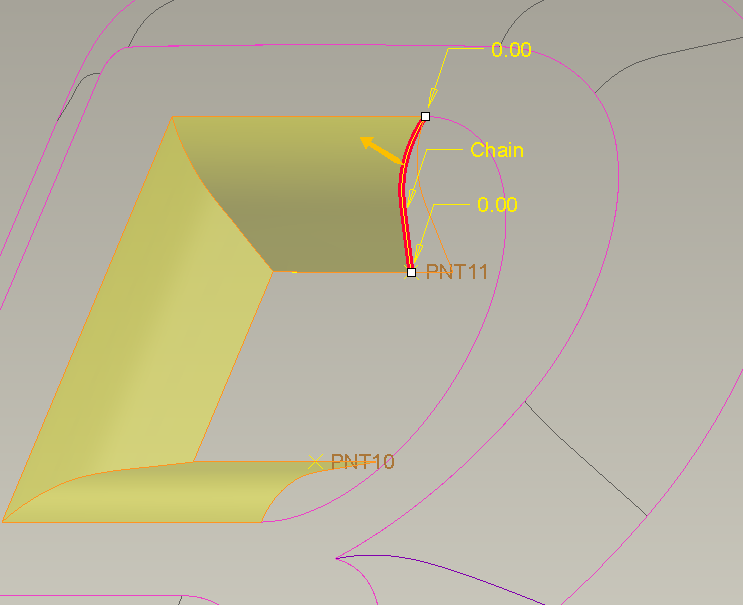

It should be visible like in wireframe view mode by smaller mesh or different colour:


The same here:

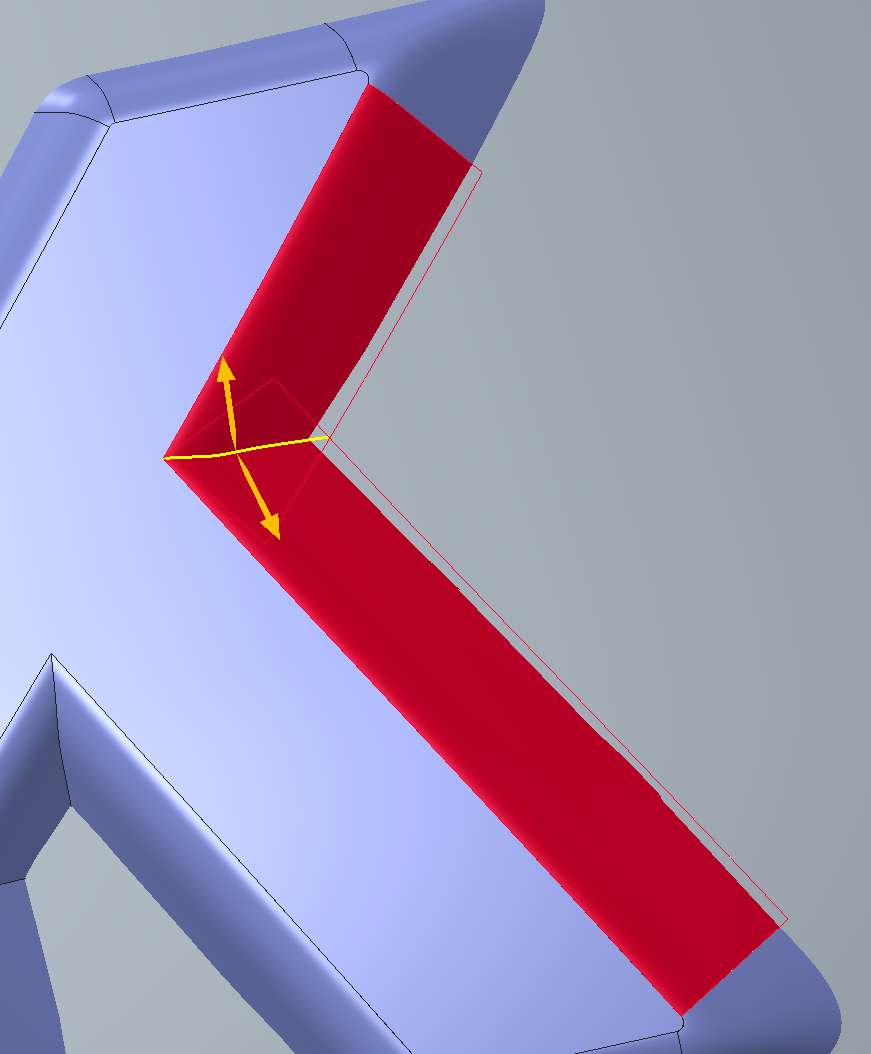

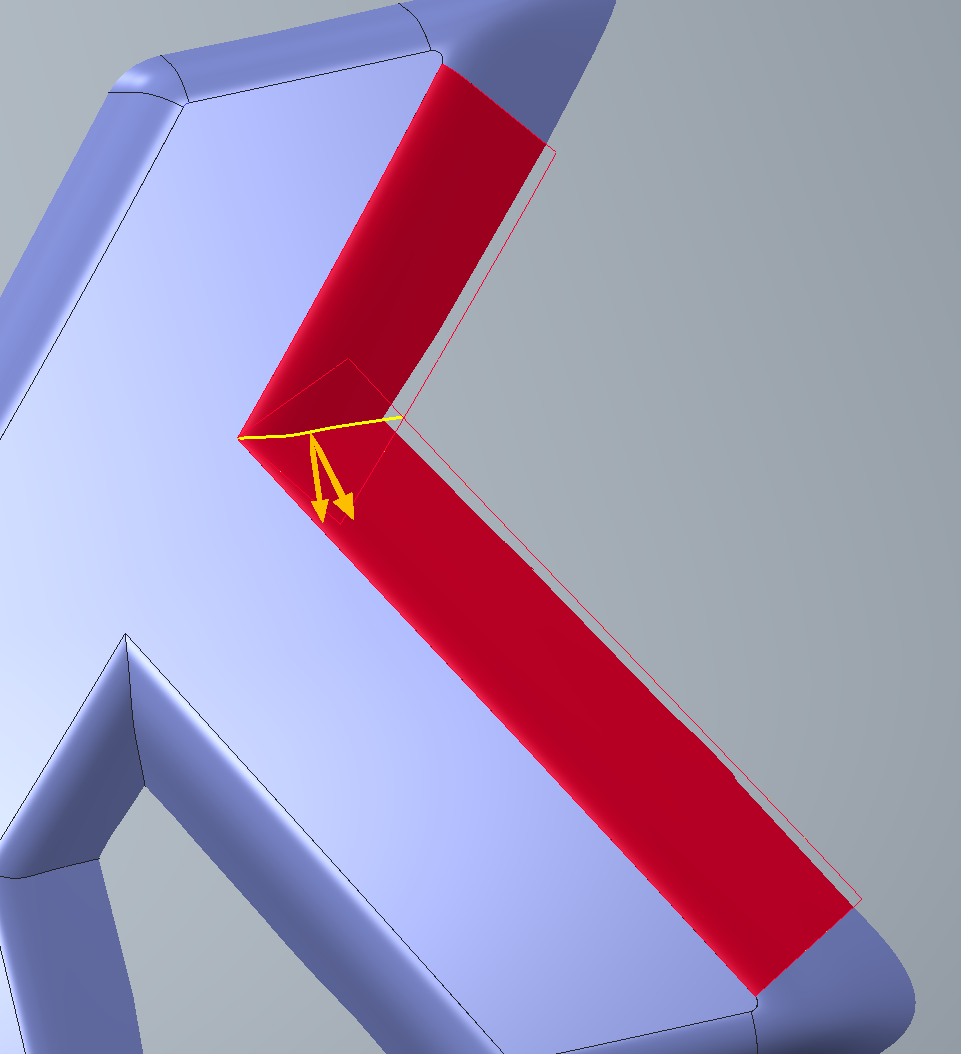

During merge smal surfaces this is even worse - I noticed only few single pixels to guess that this will be the remaining part of the surface:




Even using wireframe view mode it isn't so clear:
