pattern with moving faces

[yhuang-2]

Some situations need to create the same form ,but their width or length is different

Bellow picture

I can pattern a lot of hole, but I need to move their face to n+1mm one by one.

Maybe the pattern can pattern the same form and change their width or length.

Like creo parameter pattern function.

[mschubert-2]

Select both dimensions (Ctrl + LMB) for the pattern. You can choose different increments for each Dimension.

[pperrin]

Hello,

Right, idem with captures to follow the creation process

Feature creation + pattern

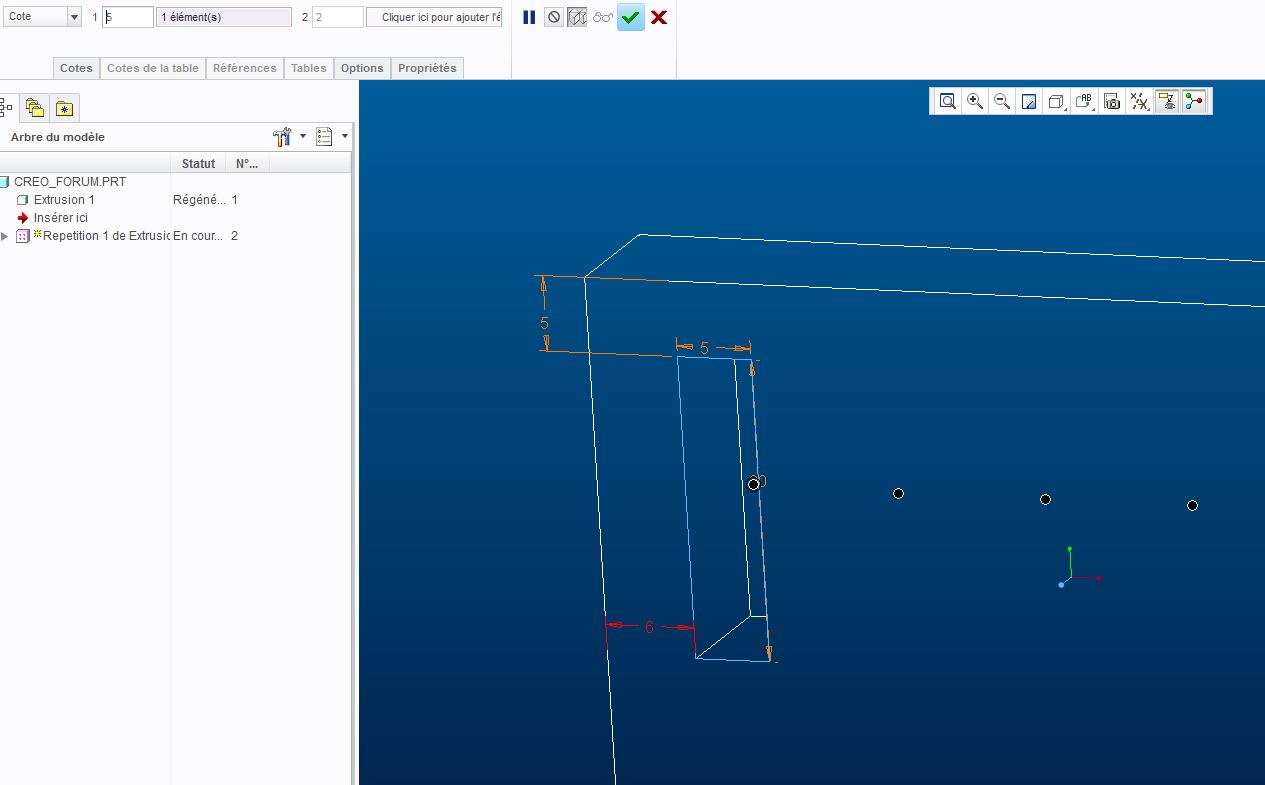

Selection first pattern direction (5 mm from the vertical side)

Enter pattern step, (here 10)

Enter number of repetitions and validade

Press CTRL and select second dimension (here width), then enter pattern step for this dimension

(1 element(s) becomes 2 element(s))

Voilà!

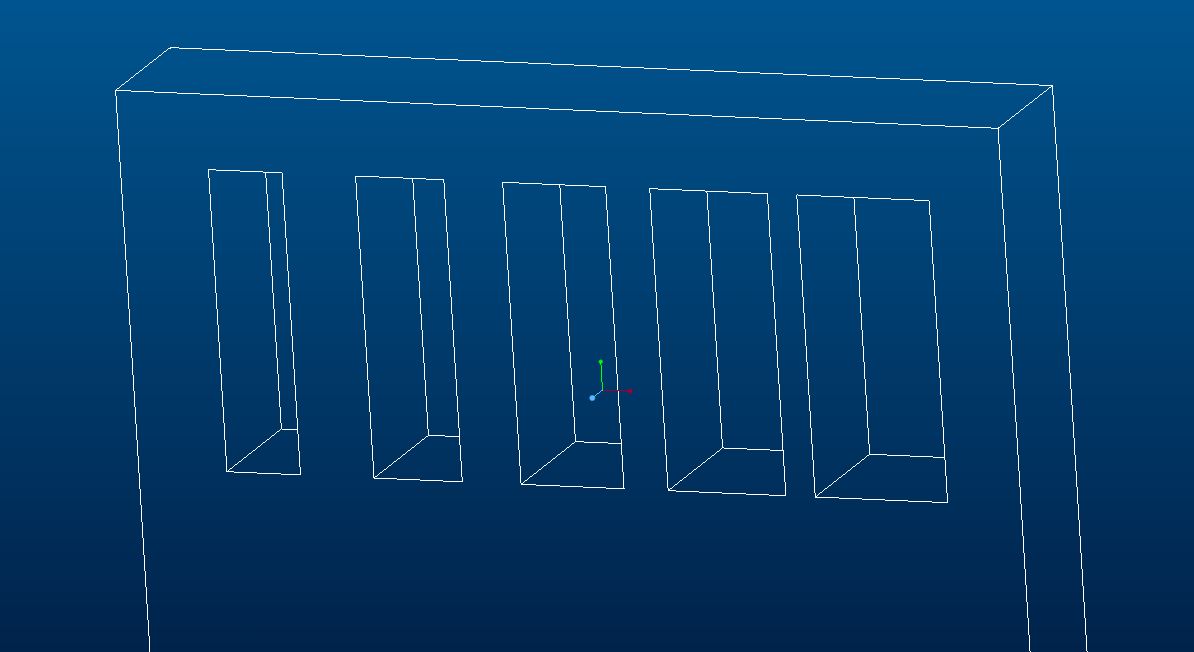

5 different shapes: step of 10 mm and +1 mm by repetition (from 5 to 10 mm wide)

Pierre

[yhuang-2]

Hi,

The function is Creo parametric not Creo elements direct.

Creo elements direct need the function for the picture

[yhuang-2]

Hi,

The dimensions is refered and it is still modified one by one.

I need change once. Because I change twenty or a lot of holes.

[olivierlp]

Hello,
