How to use quilt of component B cutting solid of component A ?

NT_10507751
6-Contributor

How to use quilt of component B cutting solid of component A ?

hello everyone!

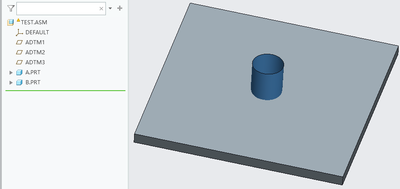

My problem is that there are two components in an assembly , the component "A" has a square body, and the component "B" has a cylindrical quilt . Like the following picture.

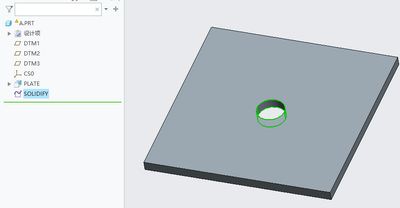

I want to use Creo Object TOOLKIT or TOOLKIT to use the quilt of component B as the cutting reference to create a curing feature in component A, and the cylindrical quilt of component B to cut the solid of component A.The final effect is as follows.




I tried to fill the Solidify element tree with the pointer of quilt, and then use the "wfcWSolid_ptr" of component A creates the feature, but the creation failed because the solidify feature has no reference quilt.



If anyone knows how to use B's quilt as a reference to create the curing feature, or how to successfully create the feature, please tell me the specific method, thank you very much!

1 ACCEPTED SOLUTION

Accepted Solutions

Export SOLIDIFY feature tree to xml and analyze how the feature tree is filled.

View solution in original post

2 REPLIES 2

Export SOLIDIFY feature tree to xml and analyze how the feature tree is filled.

Thanks!You are right!
