Creo 4 - Datum Feature Symbols and Dimension Arrows Disapearing

Highlighted
Regular Member

Creo 4 - Datum Feature Symbols and Dimension Arrows Disapearing

When I attach a Datum Feature Symbol to a drawing dimension (Creo 4, M030) and them move the symbol, one arrowhead of the dimesion I place the symbol on will disapear. After it's gone, there is no way that I can find to bring it back.

Anyone else see this and have you come up with a workaround?


15 REPLIES 15
Highlighted

Re: Creo 4 - Datum Feature Symbols and Dimension Arrows Disapearing

Hi,



at the moment your video is waiting for approval and is not available. Please upload some example data for testing purposes.


Martin Hanák
Highlighted

Re: Creo 4 - Datum Feature Symbols and Dimension Arrows Disapearing

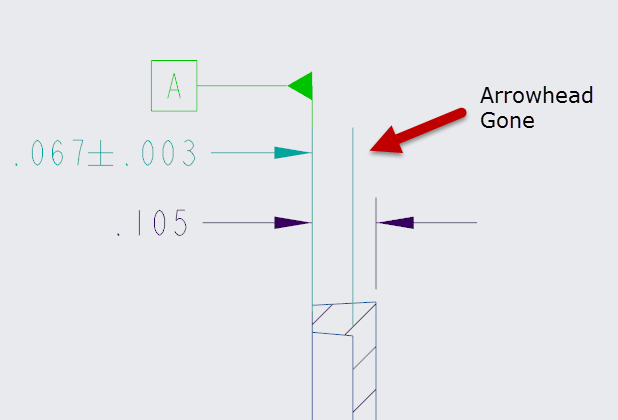

I added an image that should help. It's pretty simple, attach a Datum Feature Symbol to a dimension witness line and then move the symbol. You'll see that one of your arrow heads disapears... Really just wondering how people are getting around this as I cannot believe it isn't affecting other users.

Highlighted

Re: Creo 4 - Datum Feature Symbols and Dimension Arrows Disapearing

To be honest, I don't think there has been widespread adoption of Creo 4 at this point. Large companies tend to wait to upgrade for a significant amount time so the "bugs" have been worked out by the guinea pigs!


Steve Williams
Pro/E Version 15/16 (Circa 1995/1996)
Highlighted

Re: Creo 4 - Datum Feature Symbols and Dimension Arrows Disapearing

Hi,



I can reproduce the problem when dimension arrows are flipped ouside. Please report the problem to PTC Support.


Martin Hanák
Highlighted

Re: Creo 4 - Datum Feature Symbols and Dimension Arrows Disapearing

I have reported it. Thanks.

Highlighted

Re: Creo 4 - Datum Feature Symbols and Dimension Arrows Disapearing

Was there a solution to the disappearing arrowhead?

Highlighted

Re: Creo 4 - Datum Feature Symbols and Dimension Arrows Disapearing

Most likely this was affected by a setting in the DTL file.

Highlighted

Re: Creo 4 - Datum Feature Symbols and Dimension Arrows Disapearing

Try setting the drawing option update_drawing to all, to see if that helps.  Otherwise, open a case with Technical Support.



Amit

Highlighted

Re: Creo 4 - Datum Feature Symbols and Dimension Arrows Disapearing

Hi,



from my point of view setting drawing option update_drawing to all does not make any sense, because the problem is reproducible in new drawing. The option is usually used to repair old drawings.


Martin Hanák
Highlighted

Re: Creo 4 - Datum Feature Symbols and Dimension Arrows Disapearing

Tried that before I opened the call. No luck.

Highlighted

Re: Creo 4 - Datum Feature Symbols and Dimension Arrows Disapearing

Highlighted

Re: Creo 4 - Datum Feature Symbols and Dimension Arrows Disapearing

Hopefully the problem is resolved in Creo Parametric 4.0 M050.



See:

https://www.ptc.com/en/support/article?n=CS272158

https://www.ptc.com/en/support/article?n=CS278522




Martin Hanák
Highlighted

Re: Creo 4 - Datum Feature Symbols and Dimension Arrows Disapearing

By moving the Datum Feature Symbol you are converting the symbol from applying to the thickness of the feature to the surface of the part; it breaks a Feature of Size reference.



The defect isn't that the dimension arrow is gone, it's that Creo is letting you move the Datum Feature Symbol at all. Creo should move the dimension and Datum Feature Symbol together or force you to delete the Datum Feature Symbol Annotation. It should not let you relocate the Annotation by itself.



I expect if you do delete the Annotation that the other dimension arrowhead will return.

Highlighted

Re: Creo 4 - Datum Feature Symbols and Dimension Arrows Disapearing

In the view this DFS is being placed (and in most other views), the "surface" it is applied to cannot be selected (and you cannot select an edge) so the dimension witness line is the only option.

Prior to Creo 4, we would show the set Datum, then move it into the position we needed. It seems in Creo 4 I cannot move my DFS. Hopefully PTC has a solution soon.

Highlighted

Re: Creo 4 - Datum Feature Symbols and Dimension Arrows Disapearing

I create/apply all annotations in the model and showed them on the drawing. The drafting part of Creo has always had trouble with FCFs and Datum Feature Symbols.
