TEXT ABOVE DIMENSION LINE

SOLVED
Garnet

TEXT ABOVE DIMENSION LINE

Hello

Using CREO4

in 3D model, using Annotate I create the Annotation feature to define the dimensions.

Is it possible to change the position of text for all dims (parallel and above) using any config option ?

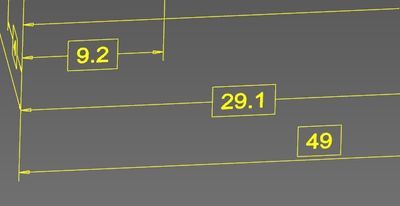

see the dim "49" in the the pic !



pic- 4708.jpgpic- 4709.jpg

















Thanks

Pierluigi

1 ACCEPTED SOLUTION

Accepted Solutions

Re: TEXT ABOVE DIMENSION LINE

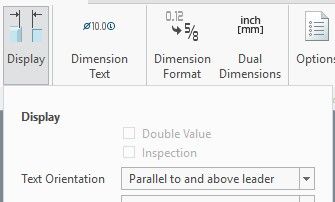

File > Prepare > Change Detail options (last one in the list)

View solution in original post

6 REPLIES 6

Re: TEXT ABOVE DIMENSION LINE

Hi,

in model set detail option ...

default_lindim_text_orientation PARALLEL_TO_AND_ABOVE_LEADER


Martin Hanák

Re: TEXT ABOVE DIMENSION LINE

Detail option by Martin will work for new dimensions, existing needs to be update separately.

Re: TEXT ABOVE DIMENSION LINE

The mentioned option works for Drawing and I got it.

How to manage the 3D Annotation Features ?



Pier

Re: TEXT ABOVE DIMENSION LINE

File > Prepare > Change Detail options (last one in the list)

View solution in original post

Re: TEXT ABOVE DIMENSION LINE

Ok thanks.

It works.

But there is not any option for config.

I suppose I have to change the Template 3D model.

Thanks again !

Pier



Re: TEXT ABOVE DIMENSION LINE


@pdiletti-2 wrote:

Ok thanks.

It works.

But there is not any option for config.

I suppose I have to change the Template 3D model.

Thanks again !

Pier




Yes, you have to modify part template.


Martin Hanák
