Cut exclusions in drawing
Hi
When I create a section view in the drawing the hatch will create for regions that are not necessary and these regions are part of cut exclusions in standards. What should I do to prevent cut exclusions in drawing when I create a 2D draft and section view and prevent hatches on these regions?
Labels:
- Labels:
-
Drawing Manager
3 REPLIES 3
Feb 22, 2024
04:02 AM
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
Feb 22, 2024
04:02 AM
To hide hatching, I suggest to change the hatch distance to a value bigger than the width of the hatch zone.
http://kotom.eng.free.fr
Mar 07, 2024
06:42 AM
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
Mar 07, 2024
06:42 AM
You can remove hatch following these steps:
- select Layout tab

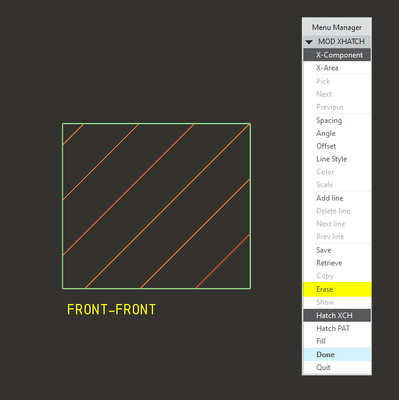

- double click on hatch to open menu on picture below
- click on erase to remove hatch
Mar 11, 2024
10:16 AM
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Notify Moderator
Mar 11, 2024
10:16 AM

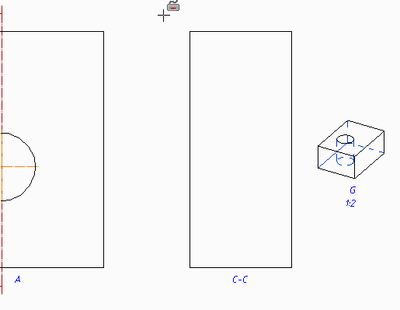

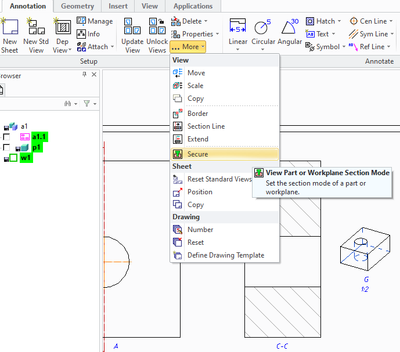

Try Secure as well:

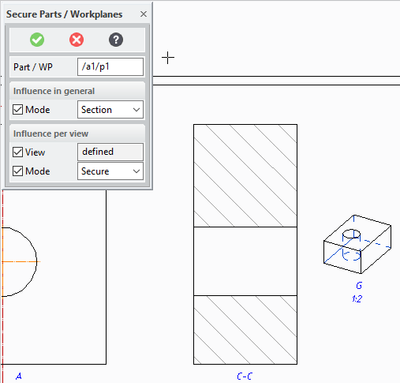

Then update the view:
http://kotom.eng.free.fr
