Wire length on drawing

ilyachaban
11-Garnet

Wire length on drawing

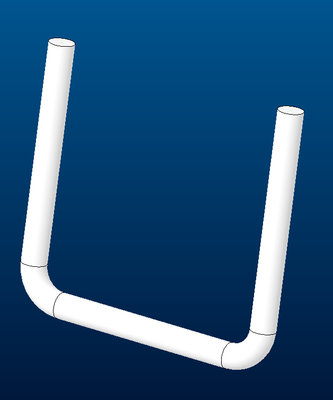

Hello, I have a part which looks like this.




I need to create a drawing of this.


On the drawing i have to have length of the wire.

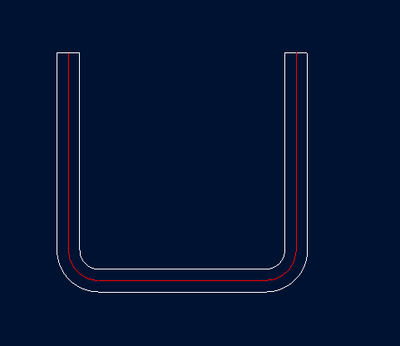

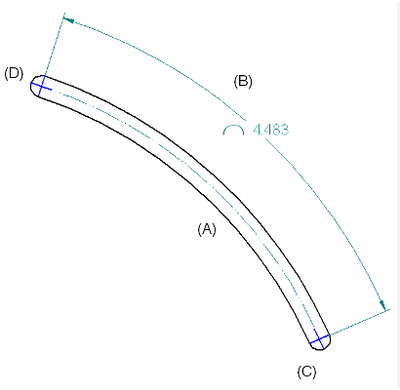

How can i create a length dimension of it's centerline that look's like dimension on following image.








1 ACCEPTED SOLUTION

Accepted Solutions

Hello ilyachaban

May I ask first which "Creo" cad program you are using?
If it is Creo x or another Creo Parametric related, then you are here in the wrong forum.
Here you are at Community Creo Elements Direct in the Modeling subsection.

Best regards and have a nice day

Friedhelm

(Please write info in your Signature) Sysinfo: I use Creo Elements Direct /Drafting, /Modeling and /Modeling Express 8.0 ( formerly CoCreate- SolidDesigner and Drafting or ME10 )

View solution in original post

2 REPLIES 2

Hello ilyachaban

May I ask first which "Creo" cad program you are using?
If it is Creo x or another Creo Parametric related, then you are here in the wrong forum.
Here you are at Community Creo Elements Direct in the Modeling subsection.

Best regards and have a nice day

Friedhelm

(Please write info in your Signature) Sysinfo: I use Creo Elements Direct /Drafting, /Modeling and /Modeling Express 8.0 ( formerly CoCreate- SolidDesigner and Drafting or ME10 )
Kotom-Eng
15-Moonstone
(To:ilyachaban)

On Modeling, with the standard tools, you cannot add a dimension on a symmetry line. As a workaround, create an arc on the symmetry line and put a dimension on it. Attention, if you modify the 3D, the arc will not be updated.



On Drafting, you can add a dimension on a symmetry line.

http://kotom.eng.free.fr
