How to plot a conical hat ?

lvl107
19-Tanzanite

How to plot a conical hat ?

  Hello Everyone.

  From :

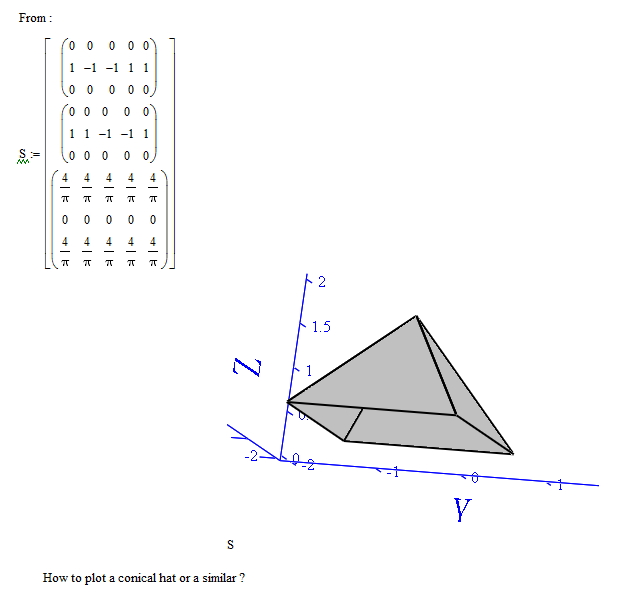

How to plot a conical hat ?

Thanks in advance for your time and help.
   Regards.

1 ACCEPTED SOLUTION

Accepted Solutions
Werner_E
24-Ruby V
(To:lvl107)

7 REPLIES 7
Werner_E
24-Ruby V
(To:lvl107)

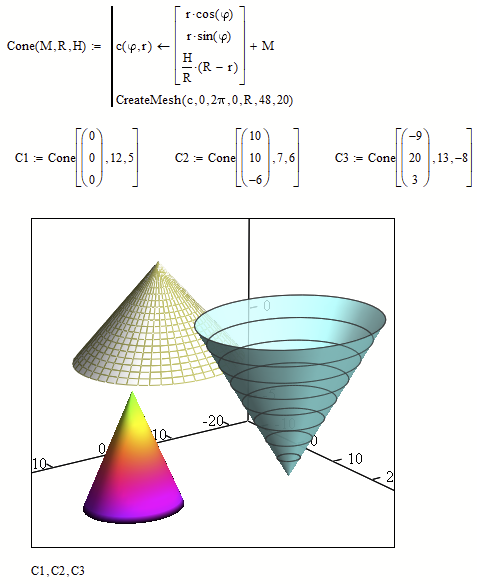

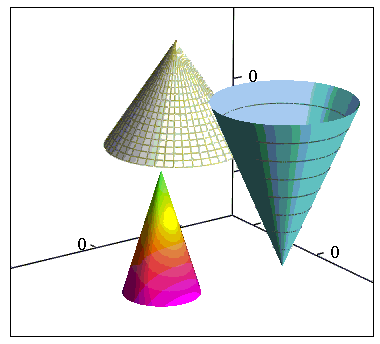

One out of many ways to do it:




MC15 file attached



lvl107
19-Tanzanite
(To:Werner_E)

  Many, many thanks, Werner. 😀

Werner_E
24-Ruby V
(To:lvl107)

Have fun!


lvl107
19-Tanzanite
(To:lvl107)

  I still have a small query : Need help to plot a beach umbrella.


Werner_E
24-Ruby V
(To:lvl107)

What kind of help? Obviously you succeeded.

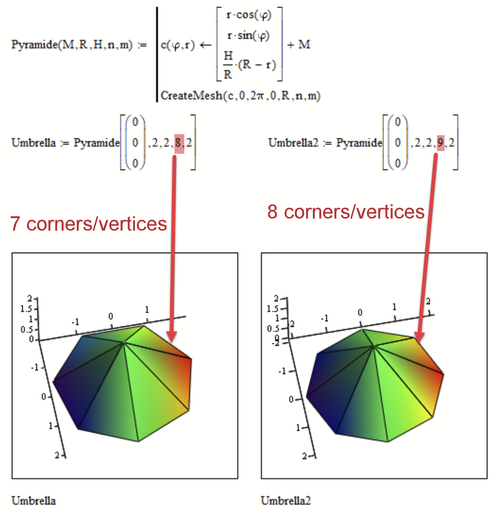

You may also use a slightly modified version of my "cone" function:




lvl107
19-Tanzanite
(To:Werner_E)

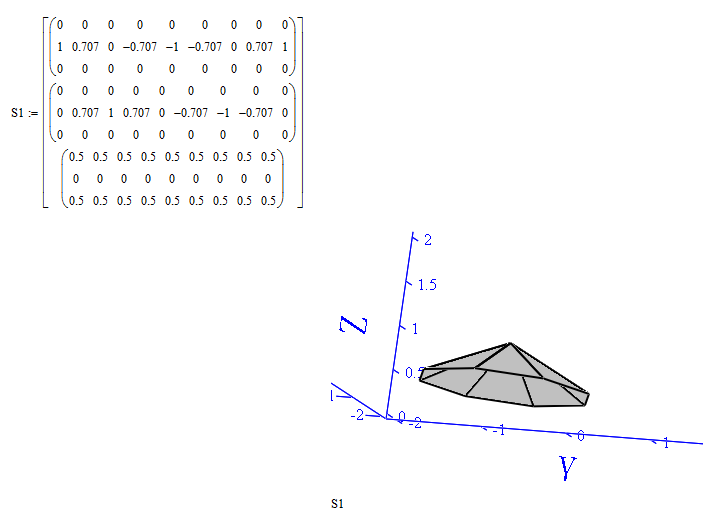

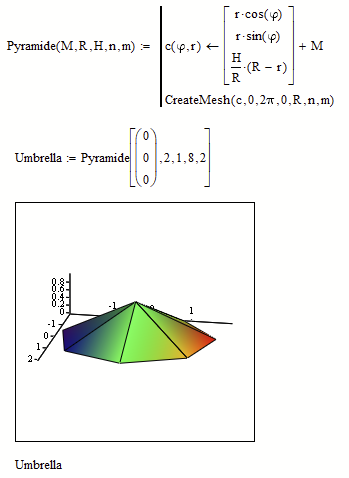

"What kind of help?". Need help to create a program to plot a beach umbrella or conical hat with base is regular polygon. Need help to create a program to learn some more operations ... in programming. ( I will learn about "CreateMesh( , , ...)"

   Best Regards.

      Loi.

Werner_E
24-Ruby V
(To:lvl107)
