Unknown software for pressure diagram charts

jrodriguez-9
5-Regular Member

Unknown software for pressure diagram charts

Can anyone recognize which software do these pressure diagram charts are made from? Can Mathcad do anything of this nature? Thanks

4 REPLIES 4

I don't know what made those exactly.  But GNU R can do them (or any other plot basically), and it's free.

You can plot them also in Mathcad 14/15 but you have to construct the legend.

Sample enclosed.

See this on Mathcad 14 calculation server

http://twt.mpei.ac.ru/MCS/Worksheets/TMO/Pde-Temperature.xmcd

I have used two sepatate counter plots.

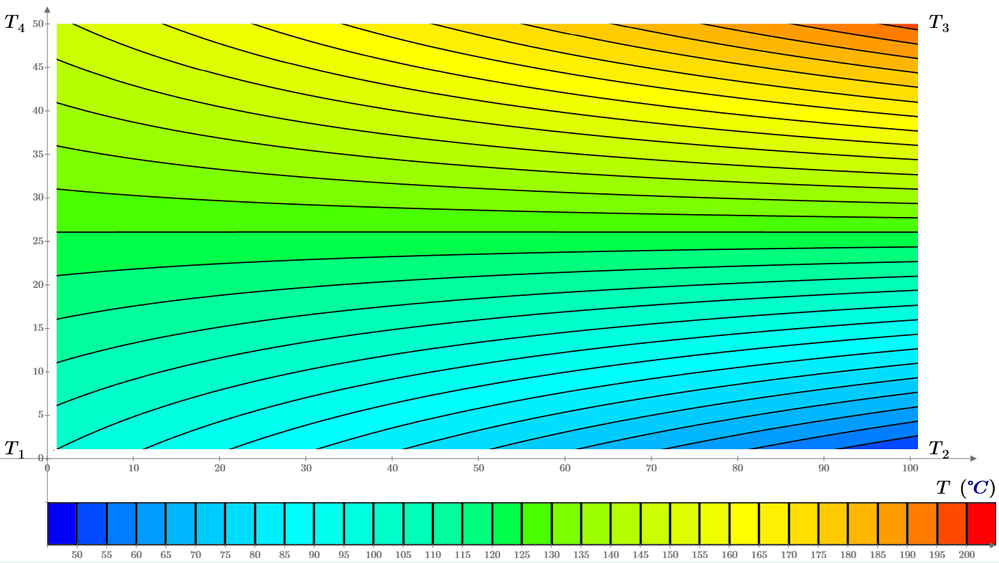

See please the temperature field created in Mathcad Prime

(one Fig. from the book http://www.springer.com/gp/book/9783319266732)
