Costumize construction lines

EI_10453429
10-Marble

Costumize construction lines

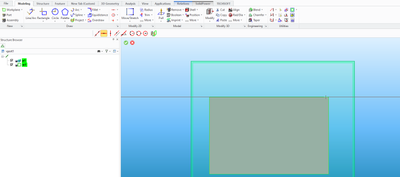

When i select the infinite horizontal construction line from the ribbon, the construction line automatically snaps on the part edges as you can see in the 1st pic bellow.

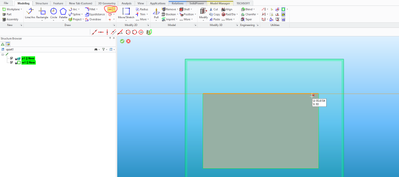

But when i add a shortcut for the construction lines, and select the same command, the line doesn't snaps anymore (2nd pic bellow).

I don't know if someone can help me, I'm new at this software .







Thanks.



ACCEPTED SOLUTION

Accepted Solutions
highway45
13-Aquamarine
(To:EI_10453429)

You have to take the shortcut from the list "2D-Copilot" and not from "Construction Lines".

Unfortunately the symbols are the same.

---------------------
SolidDesigner-20.5 + PE8 + PhoenixPDM + Solidworks + Blender

View solution in original post

2 REPLIES 2
highway45
13-Aquamarine
(To:EI_10453429)

You have to take the shortcut from the list "2D-Copilot" and not from "Construction Lines".

Unfortunately the symbols are the same.

---------------------
SolidDesigner-20.5 + PE8 + PhoenixPDM + Solidworks + Blender

As a workaround, on the catch bar, select "Part" and "Default 2D"






http://kotom.eng.free.fr
