Request for Support: Creating an Inclined Pipe Through a Plane in Creo

[MD_13460056]

Dear Creo Support Team,

My name is Minh, a student at Ho Chi Minh City University of Technology and Education (HCMUTE). While working on a design project using Creo, I encountered a technical issue and would appreciate your assistance.

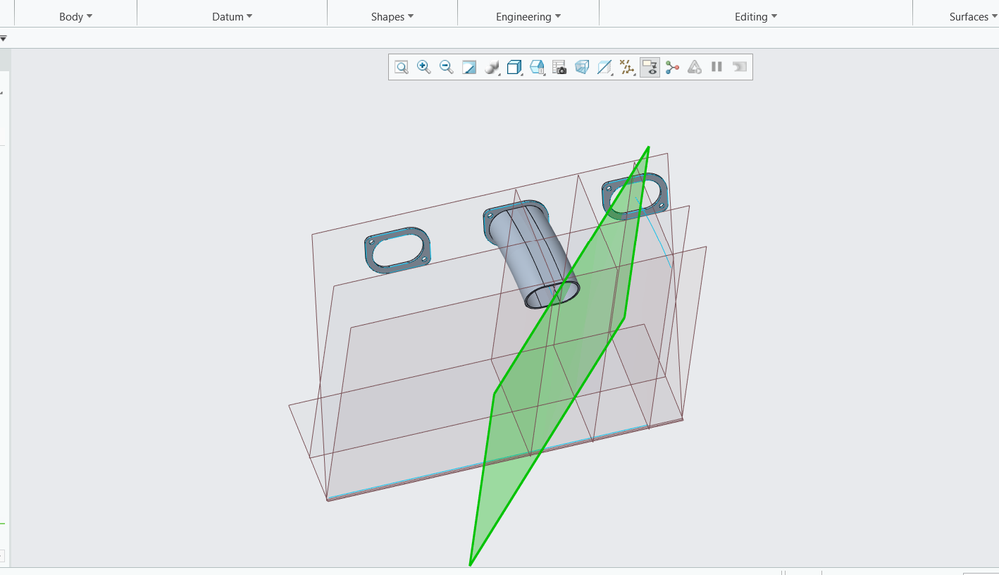

Specifically, I need to create an inclined pipe that passes through a selected plane (highlighted in green in the attached image). I have already created auxiliary planes and sketched the flanges and the initial pipe segment. However, I'm unsure how to correctly construct the inclined pipe so that it intersects the plane as required.

I would be grateful if you could provide guidance on the correct steps or which tools (such as Sweep, Extrude along a trajectory, Datum Plane, etc.) I should use in this case.

Thank you very much for your support.

Sincerely,
Minh

[vnamboodheri]

Hi MD_13460056,

Thank you for your question.

Your post appears well documented but has not yet received any response. I am replying to raise awareness. Hopefully, another community member will be able to help.

Also, feel free to add any additional information you think might be relevant. It sometimes helps to have screenshots to better understand what you are trying to do.

Regards,

Vivek N
Community Moderation Team
