Hello,

In the attached example I cannot execute the formula described in the spreadsheet in Table 5.1.

Maybe I'm the one who misplaced the formula or there's a printing error.

Sincerely.

Denis

Solved! Go to Solution.

Labels:

1 ACCEPTED SOLUTION

Accepted Solutions

Highlighted

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

09-13-2019
02:09 AM

09-13-2019
02:09 AM

That makes sense!

It also explains why I could not find what unit should be used for 'A'. But then the 'e' symbols in the formulae should be upright instead of italic.

Comparing with the English version of EN 1993-6:

- There the mu's are italic and e is upright.

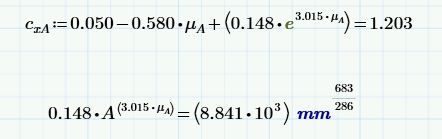

whereas in the french (picture in the prime file) the e's are italic and the mu's are upright.
