Issues with graphic in Mathcad

SOLVED
Newbie

Issues with graphic in Mathcad

Hello everyone! I'm new here and also new to MathCad. I have an assignment that requires plotting. I have worked on this for hours but I don't seem to get the plots to come out the way they should. Can somebody please be so kind and let me know what is the issue? This is a very elementary assignment, so anyone who is not a novice should be able to spot the issue. many thanks in advance!

1 ACCEPTED SOLUTION

Accepted Solutions

Re: Issues with graphic in Mathcad

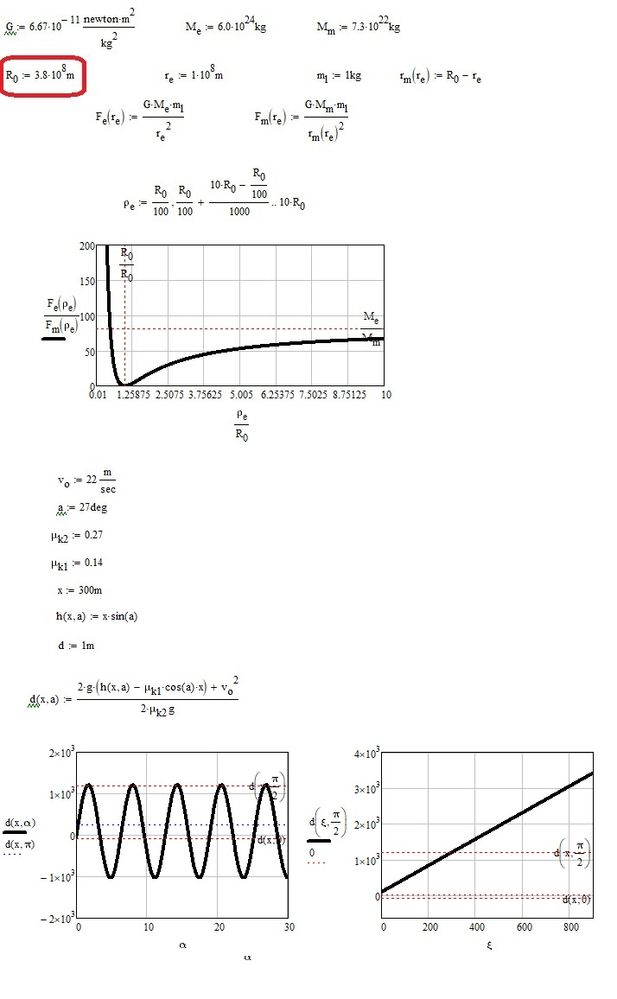

For AshleyD.jpg

4 REPLIES 4

Re: Issues with graphic in Mathcad


@AshleyD wrote:

Hello everyone! I'm new here and also new to MathCad. I have an assignment that requires plotting. I have worked on this for hours but I don't seem to get the plots to come out the way they should. Can somebody please be so kind and let me know what is the issue? This is a very elementary assignment, so anyone who is not a novice should be able to spot the issue. many thanks in advance!


See if the attached helps.



Alan



Re: Issues with graphic in Mathcad

Additionally to what Alan has shown, you should notice, that in the word document there is NOT the ratio F.e/F.m plotted but rather F.e AND F.m.

What you thought is a fraction bar is just kind of a legend, showing which color and line style is used for F.e.

You can add a placeholder for a second plot by typing a comma

Re: Issues with graphic in Mathcad

Hi,

The constant R is confused with a universal physical constant, so it is better to put a subscript, for example .0. See photo:

For AshleyD.jpg

Re: Issues with graphic in Mathcad

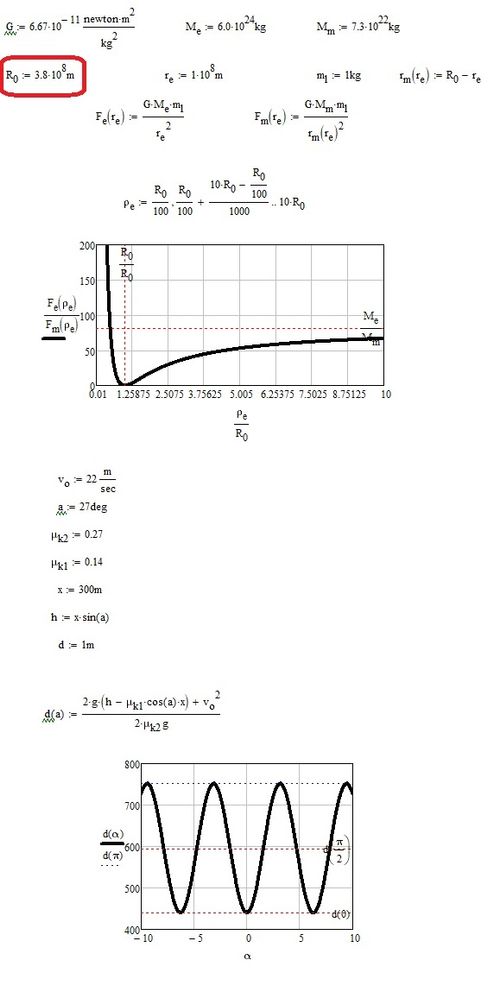

For AshleyD.jpg
