LTI Network analysis with the incidence matrix method

Hi ALL,

To whom of interest:

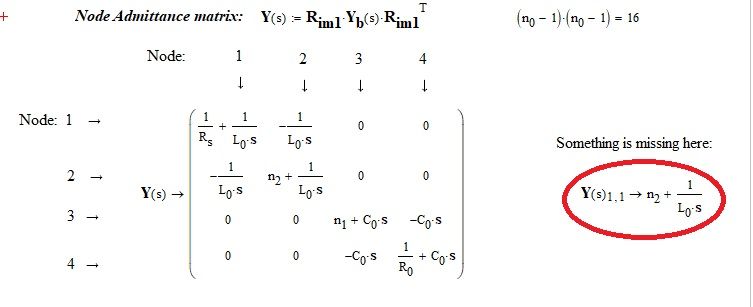

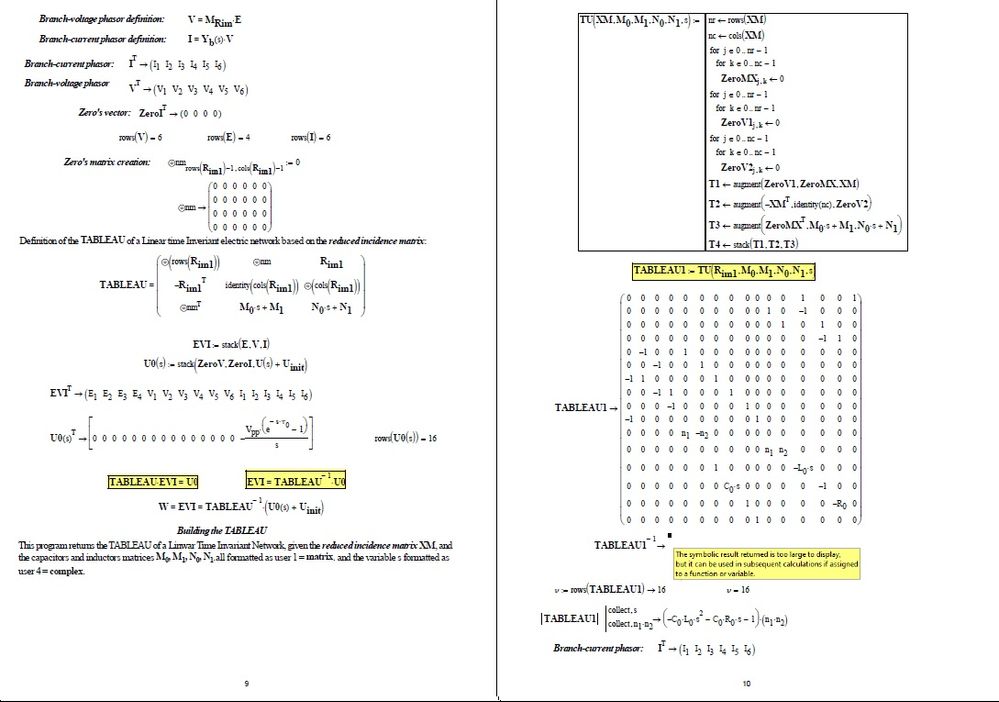

analysis of a linear time-invariant electric network, with the incidence matrix method. However, something is not correct for me, see last photo (there is the sum of an integer number and an inductive admittance, that is the dimensions of both terms aren't the same). Where is the mistake?.

7 REPLIES 7

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

11-12-2019
07:56 AM

11-12-2019
07:56 AM

Re: LTI Network analysis with the incidence matrix method

Sorry, I don't have access to Mathcad at the moment. What's Rim1 - I can't see the definition in the pages you've shown?

Stuart

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

11-12-2019
07:58 AM

11-12-2019
07:58 AM

Re: LTI Network analysis with the incidence matrix method

Hi,

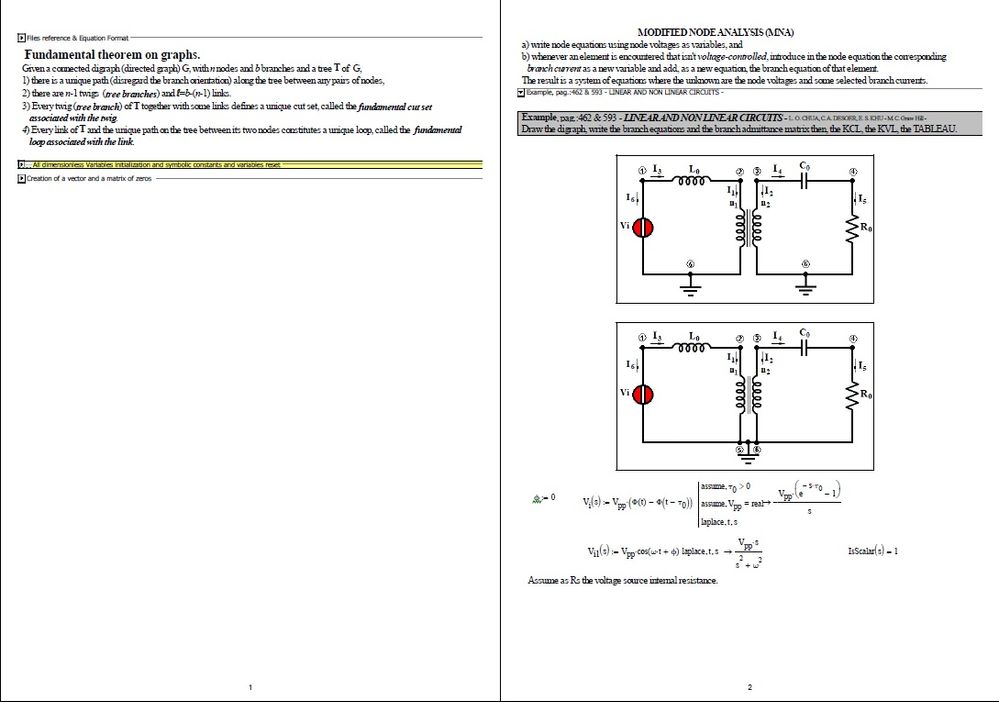

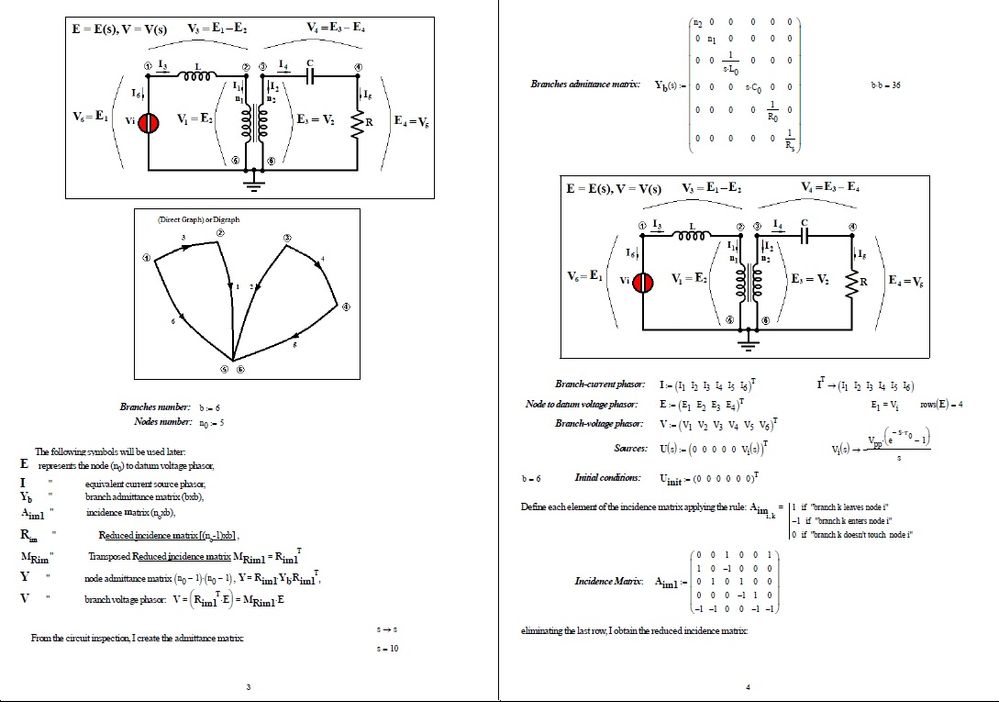

Rim is simply the acronym for Reduced incidence matrix. I'm sorry, two pages were missing, but a little while ago I added them.

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

11-12-2019
08:34 AM

11-12-2019
08:34 AM

Re: LTI Network analysis with the incidence matrix method

OK, thanks. The first question is are you sure that the branch admittance matrix is correct? It looks dimensionally incorrect, at first glance.

Stuart

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

11-13-2019
12:39 AM

11-13-2019
12:39 AM

Re: LTI Network analysis with the incidence matrix method

Hi,

surely, I was a bit hasty in defining the matrix, I needed it as a test. All the rest, however, is valid. It is necessary to take into account the action of the transformer, ie it transforms the admittances of branches 1 and 2.

Regards

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

11-12-2019
08:00 AM

11-12-2019
08:00 AM

Re: LTI Network analysis with the incidence matrix method

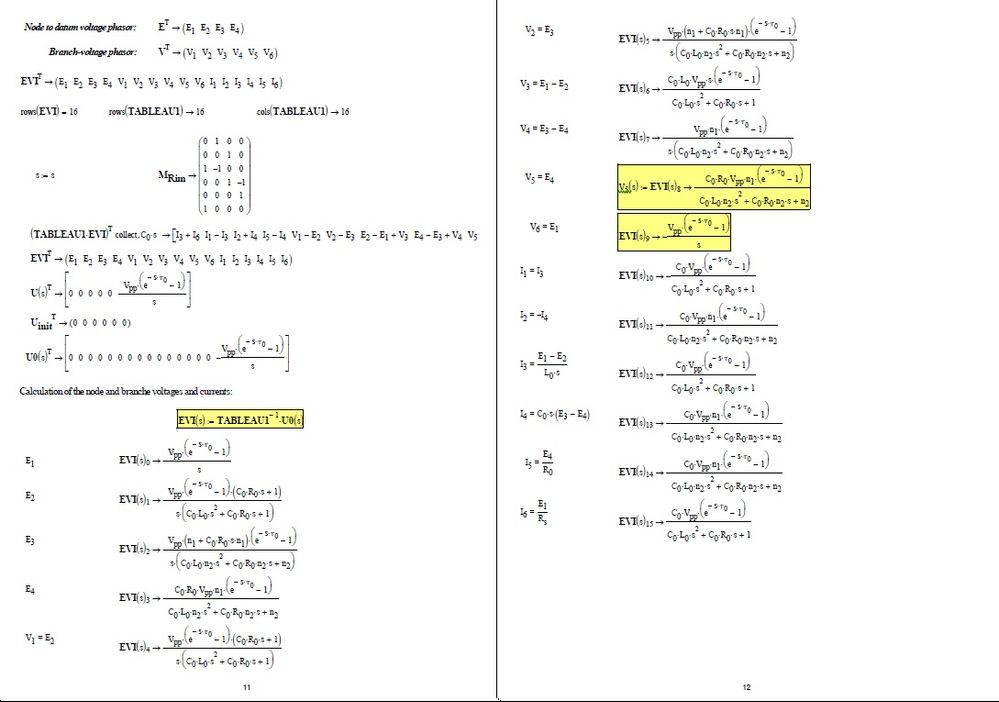

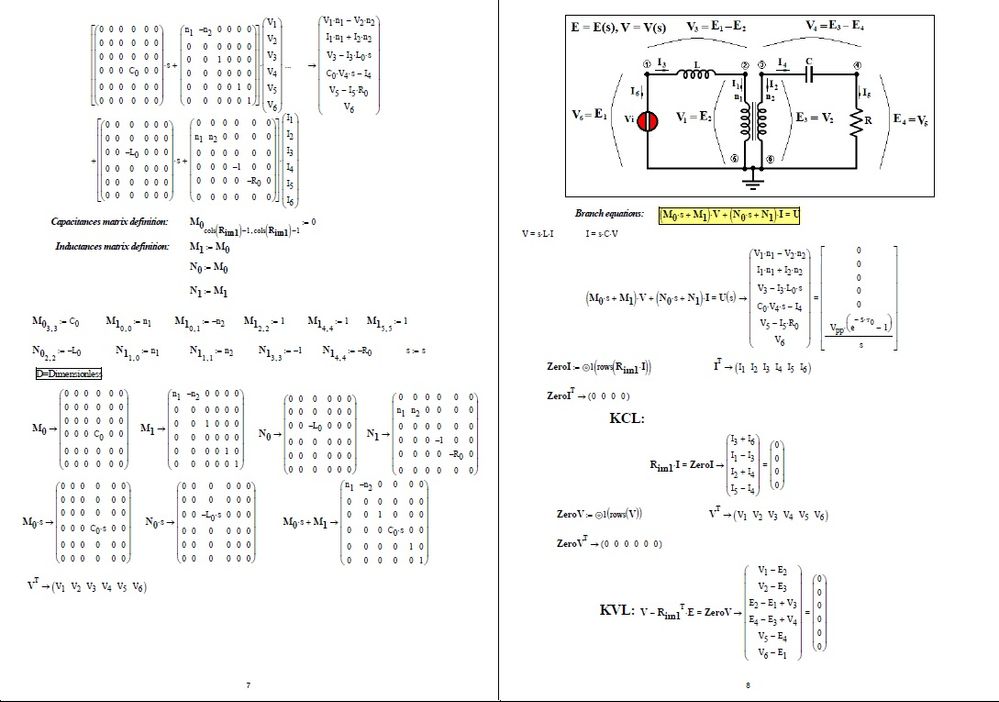

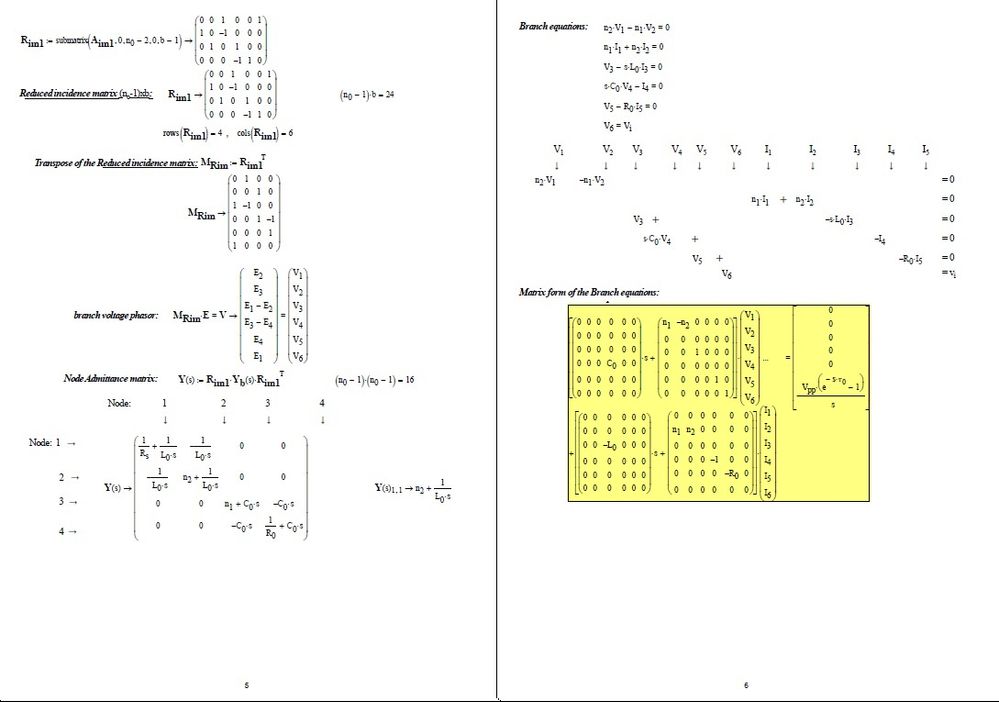

Rim1 is defined at the top of page 5, using Aim1 defined on page 4.

Luc

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

11-12-2019
08:36 AM

11-12-2019
08:36 AM

Re: LTI Network analysis with the incidence matrix method

Thanks, Luc. I looked at at the pdf before MFra had fully updated it.

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Notify Moderator

12-08-2019
05:10 AM

12-08-2019
05:10 AM

Re: LTI Network analysis with the incidence matrix method

I made the necessary corrections (see attached file).

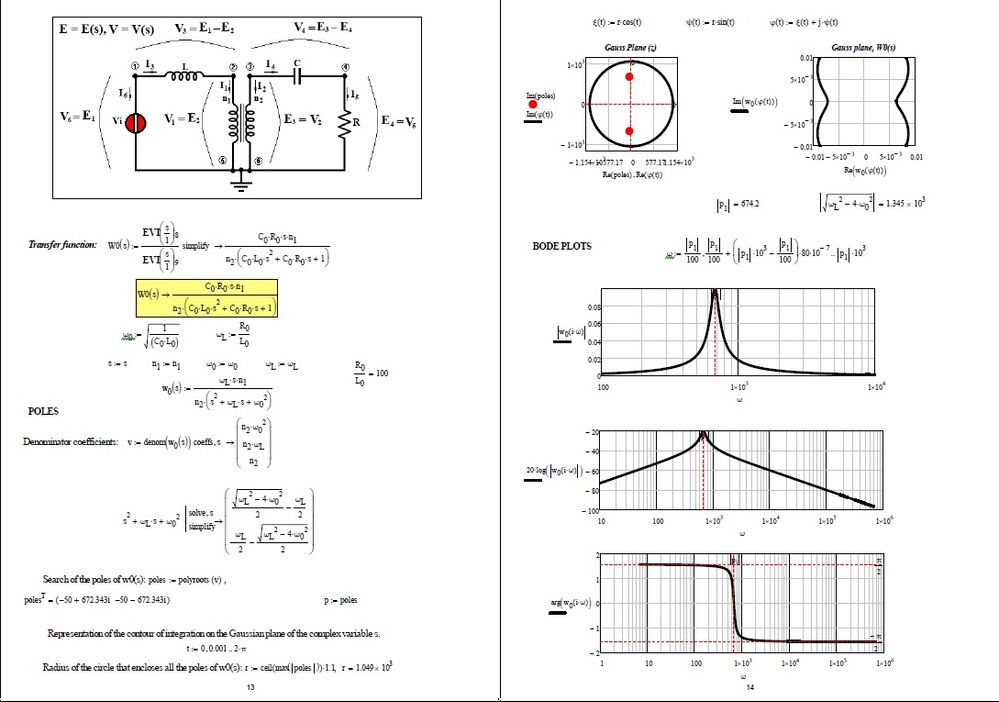

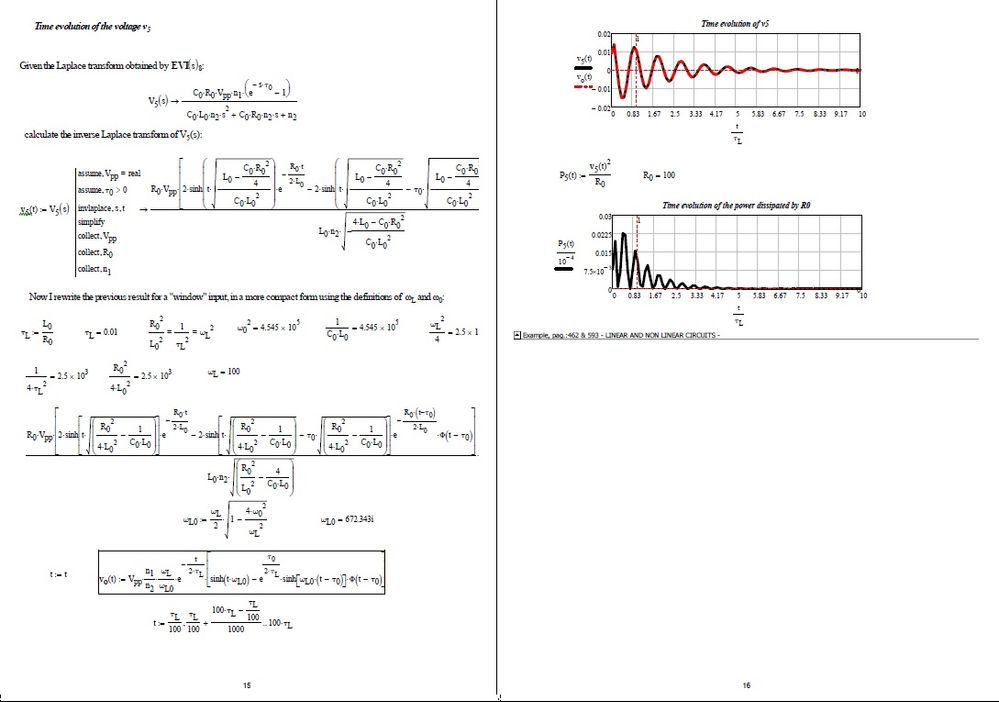

Since, opening the file with the extension .xmcd, the jpeg, or other types of images, are moved downwards in the file, I attach a pdf file to compare both files so as correct the above "defect" of Mathcad.
